Tuxedo Lift Shipping Q&A

Features:

• High-Quality Construction
• Chain Drive
• Dual point lock release
• Durable powder-coated finish
• 1-piece column construction
• Padded top bar with a shut-off kill switch

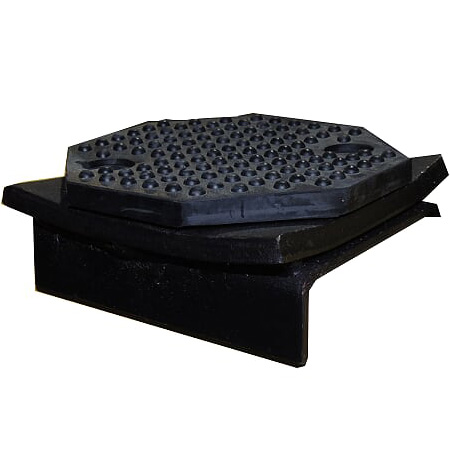

• Includes a pair of saddle pad adapters
• Low-profile design drop-in style swivel pads with 1.500 in. of height adjustment
• Includes (4) 1 3/8 in. and (4) 4 in. drop-in stackable height adapters
• Power unit mounted on the front side to reduce the overall width
• Hoses are routed internally and are protected by hose guards
• Rubber guards on columns to protect the vehicle's doors

Specs:

• Lifting Capacity: 9,000 lbs.
• Overall Height: 142.900 in.
• Maximum Lifting Height: 72 in.
• Minimum Pad Height: 4 in.
• Overall Width: 138 in.
• Width Between Columns: 113.600 in.
• Drive-Thru Clearance: 96 in.
• Lifting Speed: 50 seconds
• Front Arm Reach Minimum: 29 in.
• Front Arm Reach Maximum: 41 in.
• Rear Arm Reach Minimum: 37 in.
• Rear Arm Reach Maximum: 57 in.
• Maximum Load Per Arm: 2,250 lbs.
• Cable Diameter: 3/8 in.
• Column Size: 7.250 in. x 10.870 in.
• Column Steel Thickness: 5 mm
• Carriage Steel Thickness: 5 mm
• Arm Steel Thickness: 6 mm
• Power: 220 V, 20 Amps, 1 PH
• Weight as Shipped: 1,370 lbs.
