Features:

• Chain drive hydraulic cylinders
• Dual point lock release
• Durable powder-coated finish
• 1-piece column construction
• Includes a pair of saddle pad adapters
• Low-profile swing arm design
• Low-profile design drop-in style lift pads and saddle pad adaptors

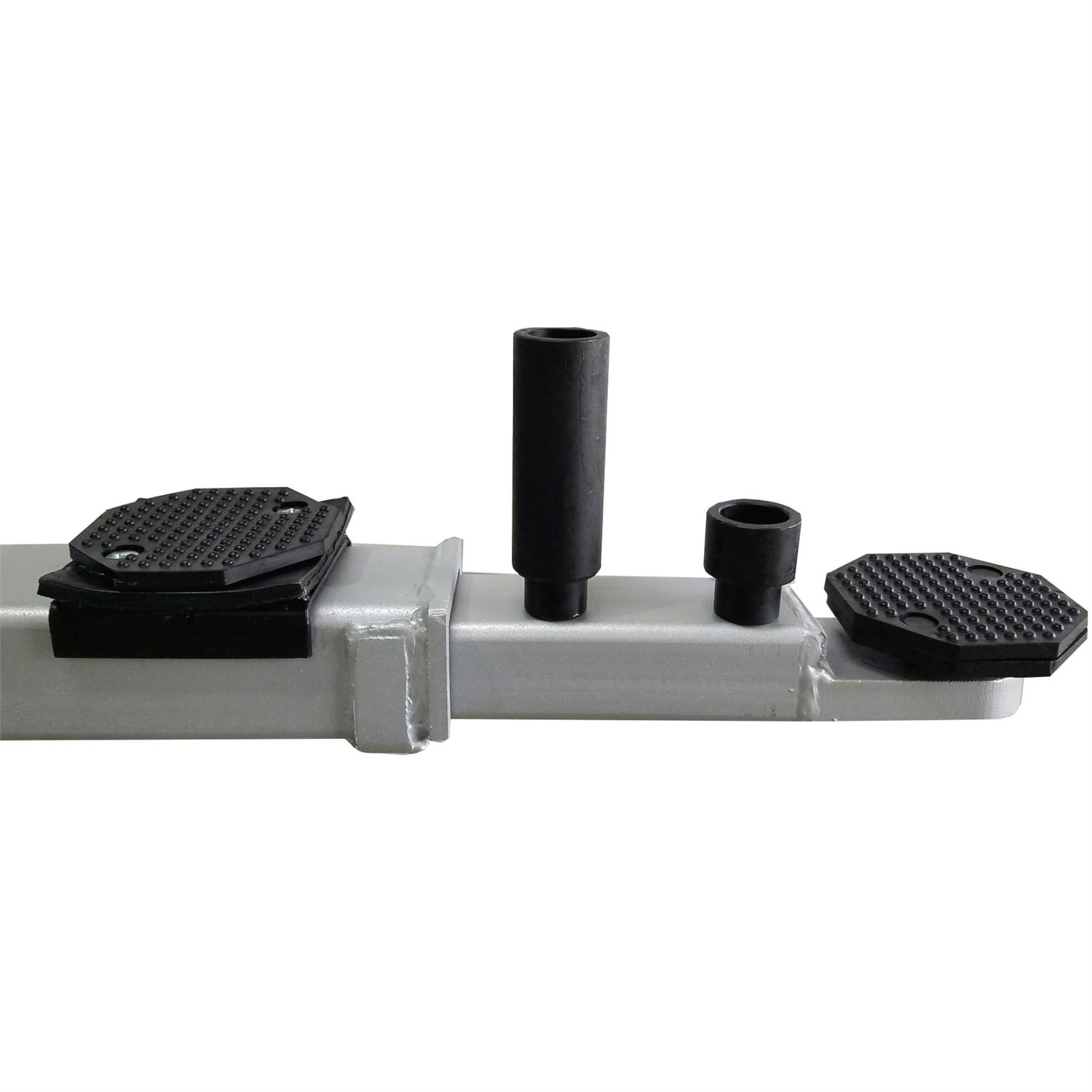

• Includes 1 5/16 in. and 5 in. stackable height adapters
• Automatic arm restraints

Specs:

• Lifting Capacity: 9,000 lbs.
• Required Ceiling Height: 113 in.
• Overall Height: 112 in.
• Maximum Lifting Height: 72 in.
• Minimum Pad Height: 4 in.
• Overall Width: 141 in.
• Width Between Columns: 110.400 in.
• Drive-Thru Clearance: 101.700 in.
• Lifting Speed: 50 seconds
• Arm Reach Minimum: 31.200 in.
• Arm Reach Maximum: 45.400 in.
• Maximum Load Per Arm: 2,250 lbs.
• Power: 220 V, 20 Amps, 1 PH
• Weight as Shipped: 1,295 lbs.
