Vehicle Info NeededU.S. WHEELPART NUMBER: 947-527-8912

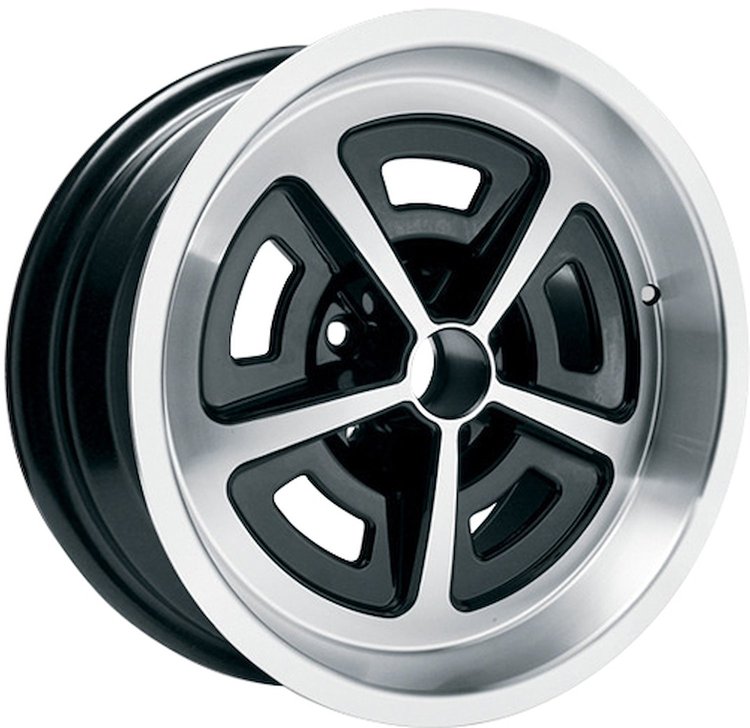

Cast Aluminum Magnum Ford and Mopar Wheel (Series 527) Size: 17" x 9"
$28699
Ships on 09/15/2026
Lowest Price Guarantee17" x 9" Series 527 Ford and Mopar Magnum Wheel
- Cast Aluminum Magnum Ford and Mopar Wheel (Series 527)
- Size: 17" x 9"
- Bolt Circle: 5 on 4.50"
- Back Spacing: 5.125"
- Offset: 3mm
- Center Bore: 72.6mm
- Load Rating: 1900 lbs
- Cast Aluminum Construction
- Painted Recesses with Machined Highlights
- Accepts ""OE"" Center Caps
- Perfect for GM, Ford and Mopar Muscle Cars
Required Lug Nuts
Acorn/Conical
Notes: Center caps and lug nuts are sold separately. Please check for proper fit before mounting.
The U.S. Wheel 527 Series GM, Ford and Mopar Magnum Cast Aluminum Wheels feature a one piece cast aluminum construction for extra strength and durability. They feature black painted recesses with machined highlights and are clear coated for protection. U.S. Wheel 527 Series GM, Ford and Mopar Magnum Cast Aluminum Wheels are available in popular 17 inch sizes to fit your next restomod muscle car project.
FeaturesPart TypeWheel
Product LineU.S. Wheel 527 Series GM, Ford and Mopar Magnum Cast Aluminum Wheels
BrandU.S. WHEEL
Package Height10.5
Package Width18.9
Package Length19.6
Weight30.55 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,900
Wheel MaterialBillet Aluminum
Wheel FinishGloss Black with Machined Face and Lip
Back Spacing5.125 in (130.175 mm)
Bolt Pattern5 x 4.5 in.
Offset0.118 In.
Hub Centric Ring CompatibleYes
Backspacing5.125 in.
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter2.858 in.
Wheel Bolt Pattern5 x 4 1/2 (114.3 mm)
Load Rating1900 lbs.
Wheel Diameter17 in.
Wheel Offset3 mm (.1181 in)
Wheel TypeCar Street Wheels
Wheel Width9 In.
Vendor Part Number527-8912
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
