Product Discontinued
U.S. WHEELPART NUMBER: 947-615-88345

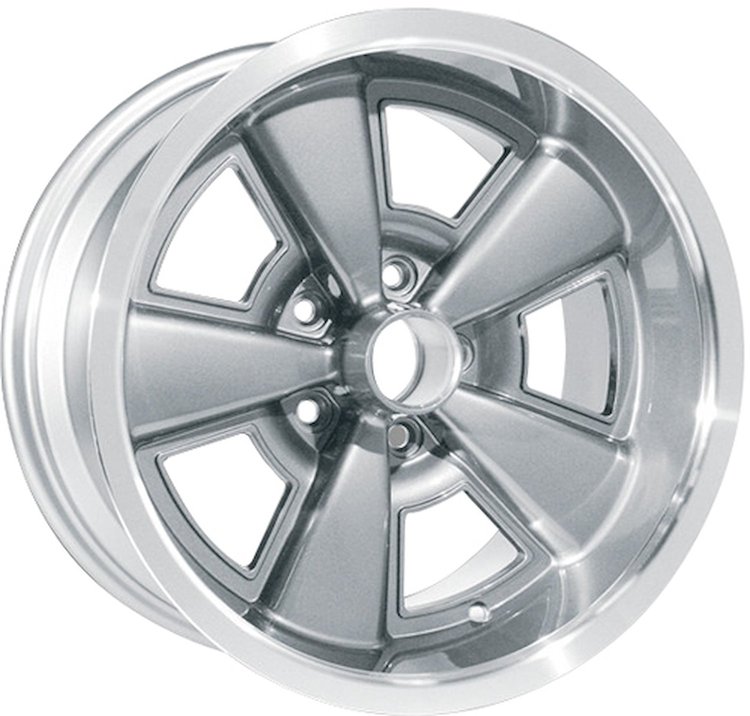

Cast Aluminum 5 Spoke GM Wheel (Series 615) 1970-81 Z28 and 1971-72 Chevelle
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
17" x 8" Wheels
- Cast Aluminum 5 Spoke GM Wheel (Series 615)
- 1970-81 Z28 and 1971-72 Chevelle
- Size: 17" x 8"
- Bolt Circle: 5 on 4.75"
- Back Spacing: 5.00"
- Offset: 12mm
- Center Bore: 72.6mm
- Load Rating: 1900 lbs
Part TypeWheel
BrandU.S. WHEEL
Package Height9.5
Package Width19.3
Package Length19.4
Weight30.27 PG
Part CategoryPerformance Parts
Load Rating (Lbs.)1,900
Wheel MaterialBillet Aluminum
Wheel FinishGunmetal Gray with Machined Lip
Back Spacing5 in (127 mm)
Bolt Pattern5 X 4.75 in.
Offset0.511 in.
Hub Centric Ring CompatibleNo
Backspacing5 in.
Small Diameter Lug Nuts RequiredNo
Center Bore Diameter2.858 in.
Wheel Bolt Pattern5 x 4 3/4 (120.65 mm)
Load Rating1900 lbs.
Wheel Diameter17 in.
Wheel Offset13 mm (.5118 in)
Wheel TypeCar Street Wheels
Wheel Width8 In.
Vendor Part Number615-88345
Package Qty1
Package TypeEA
