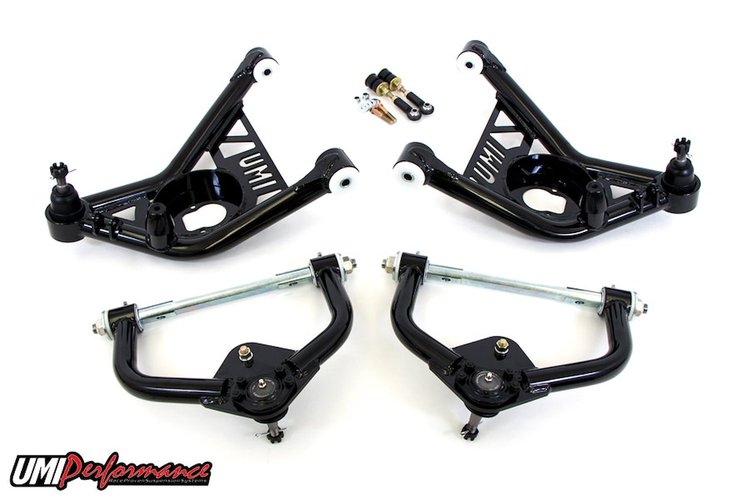

Front Upper & Lower A-Arm Kit for 1970-1981 GM F-Body

Name: Front Upper & Lower A-Arm Kit for 1970-1981 GM F-Body
Brand: UMI PERFORMANCE
SKU: 236-265253-1-B
Price: 1469.99 USD
Availability: InStock

^$1,469⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

Front Upper & Lower A-Arm Kit

1970-1981 GM F-Body
Black
Includes:
Tubular Upper A-Arms with Derlin Bushings
Tubular Lower A-Arms with Derlin Bushings
Tall Ball Joints
Sway Bar Endlinks

UMI's 2nd Generation F-body a-arm kit, designed to make your classic cruiser feel like modern muscle. Increased positive caster combined with improved camber curve and low friction Delrin bushings make for a well-tuned front end. Increased caster is achieved relocating both the upper and lower ball joints to enhance steering feel and improve high speed stability. As designed, the caster range is 5-7 degrees. The spindle pin location remains unchanged so fender clearance is like stock. The upper a-arms include offset chromoly cross shafts to reduce the amount of shims required when setting camber as well as a tall ball joint to improve camber gain. Upper and lower a-arms are assembled with UMI built Delrin bushings to allow proper suspension movement. A pancake style polyurethane bump stop is included to control suspension droop. The heavy duty lower spring bucket accepts factory and aftermarket coil springs as well as the popular hybrid coilover units. Laser cut UMI reinforcement plates add a great appearance and excellent strength.

Part TypeControl Arm Kit

BrandUMI PERFORMANCE

Package Height16.0

Package Width17.0

Package Length20.0

Weight48.0 PG

Part CategoryPerformance Parts

Part FitmentDirect Fit

Vendor Part Number265253-1-B

Package Qty1

Package TypeEA

No Questions
