Stage 1 Handling Kit [1973-1987 GM C10, C15 Truck]

Name: Stage 1 Handling Kit [1973-1987 GM C10, C15 Truck]
Brand: UMI PERFORMANCE
SKU: 236-6401-B
Price: 1168.99 USD
Availability: InStock

^$1,168⁹⁹

Ships Tomorrow

Lowest Price Guarantee

GM Truck Kits (Stage 1)

Stage 1 Handling Kit

1973-1987 GM C10, C15 Truck

Factory Height

Black Powder Coated

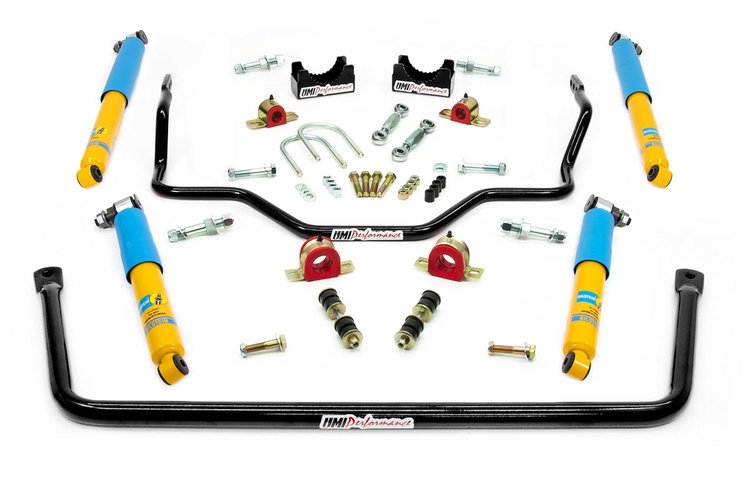

Includes Front & Rear Shocks, Sway Bars, Hardware

Stage 1 Contents

236-S150 Front Monotube Shocks with mounting hardware
236-S160 Rear Monotube Shocks with mounting hardware
236-6440-B Front Tubular 1 3/8 in. Sway Bars with End Links, and Chassis Mount Bushings
236-6443-B Rear Solid 1 in. Sway Bar with End Links, and Chassis Mount Bushings

Features

Tubular front bar saves weight and increases stiffness
Pro-Touring style solid rear bar with (3) adjustable stiffness settings
Nitrogen high-pressure gas-filled monotube tube shocks with unique truck-specific valving
Great upgrade for daily drivers with massive reductions in body roll with improved handling and control

Notes

Designed for trucks with factory ride height, will work with lowered trucks when used with UMI rear shock relocation 236-6411
Minor drilling is required for installation
Requires Chassis Brackets for Trucks without factory front sway bar mount
- 236-6444 for factory height
- 236-6445 for lowered height
Front Shock Extended Length: 14.375 in.
Front Shock Collapsed Length: 10.625 in.
Rear Shock Extended Length: 20.125 in.
Rear Shock Collapsed Length: 13 in.

Enhanced Suspension Handling

UMI Performance Handling kits are perfect for classic GM cars and an effective suspension upgrade with real handling improvements. These kits are available in a variety of stages that will transform your vehicle's handling capabilities to provide a pleasant driving experience.

Stage 1 Kits

Reduces body roll, balance, reduce floating, and provide a crisp feel without excessive oversteer while still delivering a comfortable ride.

Stage 2 Kits

(known as the Power Tour Package) provide corner-carving comfort with excellent straight-line stability and are excellent for long-distance trips.

Stage 3 Kits

are more sporty than the Power Tour Packages and feature Delrin bushings to minimize movement and improve performance.

Stage 2.5 and 3.5 Upgrade Kits

uses Viking Performance hybrid front coil-overs and fully-adjustable rear shocks to transform your vehicles' street, cornering, autocross, road racing or drag racing handling performance.

Part TypeSuspension Kit

Product LineUMI Performance GM Handling Kits

BrandUMI PERFORMANCE

Package Height13.0

Package Width28.0

Package Length83.0

Weight65.0 PG

Part CategoryPerformance Parts

Front Shock TypeGas-charged monotube

Rear Sway Bar Diameter1 in (25.4 mm)

Rear Sway Bar TypeSolid

Frame Brackets IncludedNo
