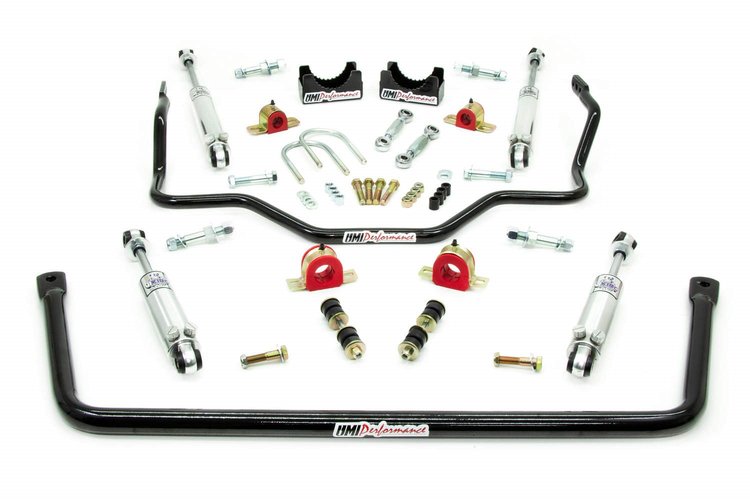

Stage 1.5 Contents

• (4) Viking Double Adjustable Shocks (Front & Rear) with mounting hardware
• 236-6440-B Front Tubular 1 3/8 in. Sway Bars with End Links, and Chassis Mount Bushings
• 236-6443-B Rear Solid 1 in. Sway Bar with End Links, and Chassis Mount Bushings

Features

• Tubular front bar saves weight and increases stiffness
• Pro-Touring style solid rear bar with (3) adjustable stiffness settings
• Vikiking double adjustable shocks provide 19 compression and 19 rebound adjustments for 361 total combinations
• Great upgrade for daily drivers with massive reductions in body roll with improved handling and control

Notes

• Designed for trucks with factory ride height, will work with lowered trucks when used with UMI rear shock relocation 236-6411
• Minor drilling is required for installation
• Requires Chassis Brackets for Trucks without factory front sway bar mount
• • 236-6444 for factory height
  • 236-6445 for lowered height
• Front Shock Extended Length: 14.240 in.
• Front Shock Collapsed Length: 10.040 in.
• Front Shock Ride Height Range: 11 5/8-12 5/8 in.
• Rear Shock Extended Length: 21.360 in.
• Rear Shock Collapsed Length: 13.610 in.
• Rear Shock Ride Height Range: 16 5/8-18 3/8 in.
