Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-1130.060

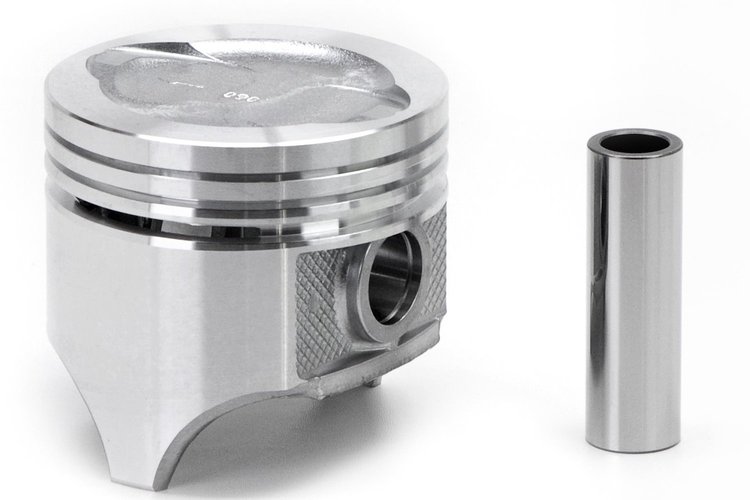

Silvolite Pistons for 1966-1970 Big Block Ford 390 FE / 6.4L
$20490
Ships Tomorrow
Lowest Price GuaranteeBig Block Ford
Silvolite Pistons 1966-1970 Big Block Ford 390 FE / 6.4L Bore: 4.050 in. (+.060) Dish Top with 4 Valve Reliefs (19cc) Offset Pin Set of 8
Technical Specs:
- Alloy: Cast 332
- Bore: 4.050'
- Compression Height: 1.760'
- Pin Size: 0.975'
- Pin Location: Offset
- Dish: +19cc 2V
- Top Landing Height: 0.307'
- Ring Grooves: 5/64' Top; 3/32' Middle; 3/16' Bottom
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.7
Package Width9.4
Package Length18.4
Weight17.47 PG
Part CategoryPerformance Parts
QuantitySet of 8
Piston MaterialSilvolite Cast
Oil Ring Thickness3/16 in.
Part FitmentSemi Universal
Piston StyleDish, with four valve reliefs
Bore4.05 in (102.87 mm)
Vendor Part Number1130.060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
