Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-1143.040

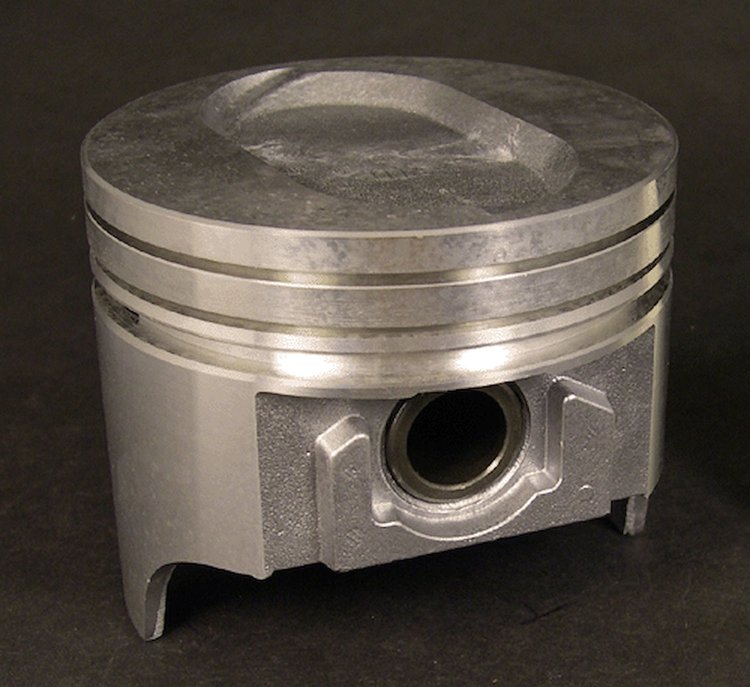

Silv-O-Lite Piston Big Block Ford 460
$24299
Ships on 09/10/2026
Lowest Price GuaranteeFord
- Silv-O-Lite Piston
- Big Block Ford 460
- Oblon .230" Head Recess with 2 Valve Reliefs
- 4.400" Bore (+.040")
- Ring thickness: 5/64" x 3/32" x 3/16"
- 8 Pkg
- Silv-O-Lite quality cast pistons are manufactured from cast aluminum and then machined to produce a unique diamond finish, all to exacting skirt tolerances. These OE-type pistons are heat-treated and machined for strength and durability, tighter piston-to-cylinder wall clearances, and longer piston life.
Part TypePiston
Product LineUEM Pistons Silv-O-Lite Cast Pistons
BrandUNITED ENGINE MACHINE
Package Height4.6
Package Width9.3
Package Length18.2
Weight19.14 PG
Part CategoryPerformance Parts
Pin Lock Rings IncludedNo
Compression Height1.76 in (44.704 mm)
Piston Ring Thickness (In.)5/64 x 5/64 x 3/16
Part FitmentSemi Universal
Wrist Pin IncludedYes
ToolStroker Combinations
Vendor Part Number1143.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
