Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-1493C.020

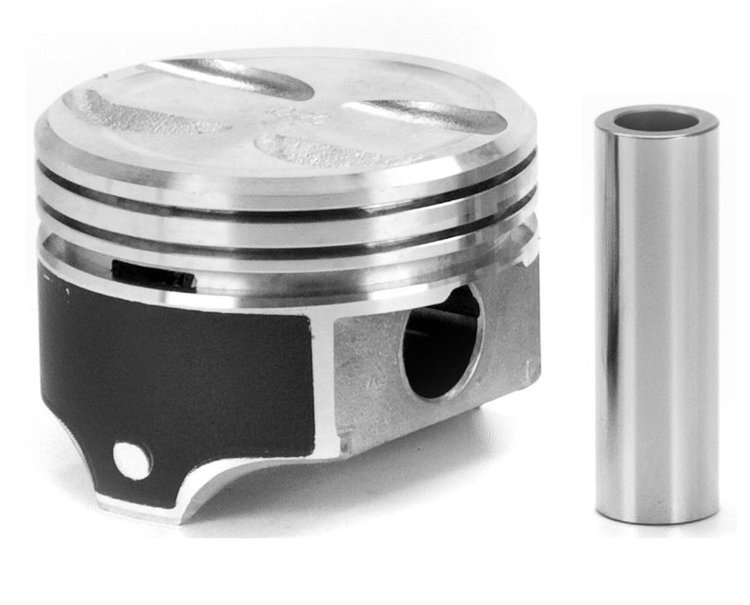

Silv-O-Lite Dish Piston Set w/Coated Skirts for Small Block Chevy 305 ci. (5.0L)
$20597
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeGM
- Silv-O-Lite Dish Piston Set w/Coated Skirts
- Small Block Chevy 305 ci. (5.0L)
- Bore: 3.780 in. (+.020 in.)
- Head Type: .040 in. Deep Dish w/4 Valve Reliefs (+6.5 cc)
- Compression Height: 1.540 in.
- Ring Grooves: 5/64, 5/64, 3/16 in.
- Set of 8
UEM 1493C.020 Silv-O-Lite Dish Piston Set w/Coated Skirts for Small Block Chevy 305 ci. (5.0L)
These Silv-O-Lite pistons are cast from 332 aluminum alloy and are a complete set of 8 with wrist pins.
Interchange Part Numbers: Sealed Power: 536NCP
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.1
Package Width10.4
Package Length20.5
Weight17.2 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)6.5
Piston Ring Thickness (In.)5/64 x 5/64 x 3/16
Wrist Pin StylePress-fit
QuantitySet of 8
Piston MaterialCast aluminum
Part FitmentSemi Universal
Piston StyleDish, with four valve reliefs
Bore3.78 in (96.012 mm)
Vendor Part Number1493C.020
Package Qty1
Package TypeEA
