Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-3437HC.030

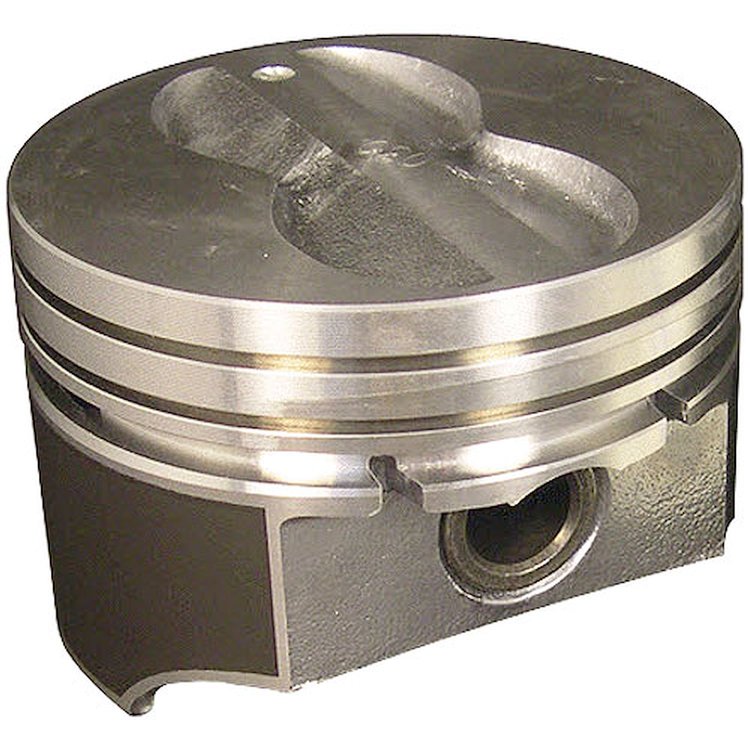

Chevy 350ci Hypereutectic Pistons Flat Top 4V Reliefs
$22081
Ships on 09/09/2026
Lowest Price Guarantee350 ci. Chevy Small Block Engines
- Chevy 350ci Hypereutectic Pistons
- Flat Top 4V Reliefs
- 4.030'' Bore (+.030'')
- Ring thickness: 5/64'' x 5/64'' x 3/16''
- Coated Skirts
- 8/pkg
Technical Specs: - Bore: 4.030'
- Compression Height: 1.560'
- Flat Top: -6.0cc 4 Symmetrical Valve Reliefs
- Pin Size: 0.9273'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Pin Location: Offset
- O.E. Assembly #/Interchange: 3911020; FM H345ACP
Interchange Part Numbers: Sealed Power: H345ACP030
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.7
Package Width9.3
Package Length18.3
Weight13.59 PG
Part CategoryPerformance Parts
Compression Distance1.56 in (39.624 mm)
Piston Ring Thickness (In.)5/64 x 3/32 x 3/16
Wrist Pin StylePress-fit
QuantitySold as a set of 8
Piston MaterialHypereutectic aluminum
Pin Diameter0.927 in (23.5 mm)
Bore (Mm)102.362
Piston StyleFlat top, with four valve reliefs
Bore4.03 in (102.362 mm)
Vendor Part Number3437HC.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
