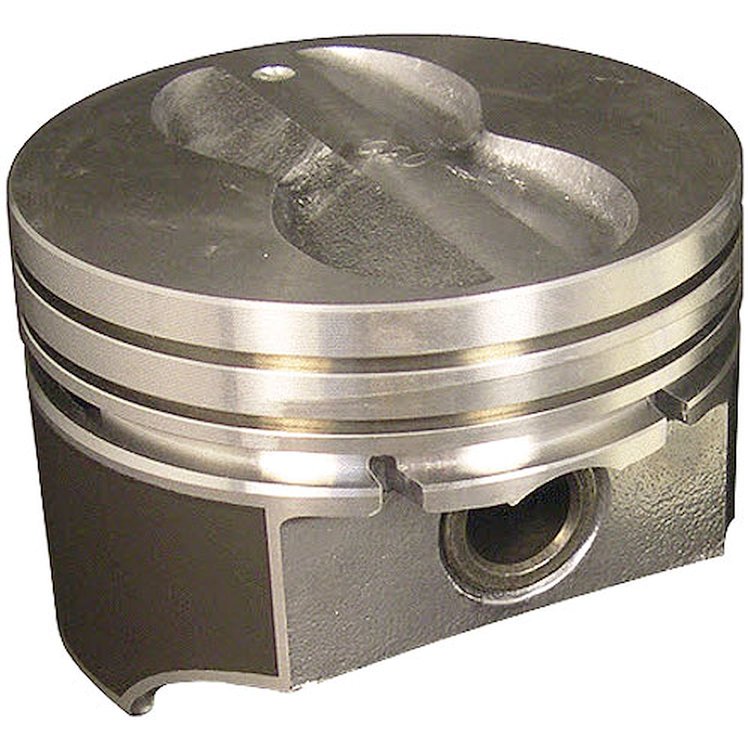

Chevy 350ci Hypereutectic Piston Flat Top 4V Reliefs
InfoVehicle Info Needed
UNITED ENGINE MACHINEPART NUMBER: 648-3437HC.040-1

Chevy 350ci Hypereutectic Piston Flat Top 4V Reliefs

$5520
ShippingShips Today
Lowest PriceLowest Price Guarantee

350 ci. Chevy Small Block Engines
    Chevy 350ci Hypereutectic Piston
  • Flat Top 4V Reliefs
  • 4.040'' Bore (+.040'')
  • Ring thickness: 5/64'' x 5/64'' x 3/16''
  • Coated Skirts
  • 1/pkg

    Technical Specs:
  • Bore: 4.040'
  • Compression Height: 1.560'
  • Flat Top: -6.0cc 4 Symmetrical Valve Reliefs
  • Pin Size: 0.9273'
  • Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
  • Pin Location: Offset
  • O.E. Assembly #/Interchange: 3911020; FM H345ACP

Get the most from your hard-earned dollars with UEM Pistons Silv-O-Lite hypereutectic pistons. These pistons utilize aluminum alloy high in silicon for greater strength plus scuff and seizure resistance. Silv-O-Lite pistons have improved groove wear and resist cracking in the crown area where operating temperatures are severe. Silv-O-Lite hypereutectic pistons feature reinforced top lands and their proprietary process of diamond finished skirts. Spend wisely and choose replacement pistons that will work hard for you--Silv-O-Lite hypereutectic pistons.

Show More

Features:

  • Reinforced top lands
  • Coated skirts
  • Floating wrist pins where applicable
  • Application specific aluminum alloys
  • Diamond finished skirts
  • Pin hole accurate to +/- .0001
  • Sold in Sets (except when noted as 1 piston per package)
Part TypePiston
Product LineUEM Pistons Silv-O-Lite Hypereutectic Small Block Chevy Pistons
BrandUNITED ENGINE MACHINE
Package Height5.1
Package Width5.1
Package Length5.3
Weight1.78 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberS3437HC.040
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
p65 warning
