Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-3526HCA-1

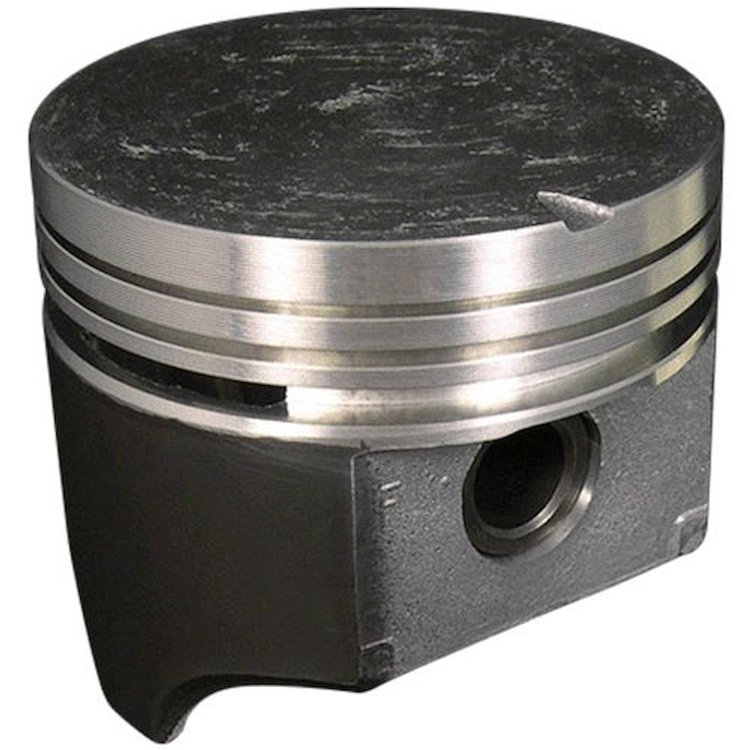

Hypereutectic Piston With Anodized Crown 2010-14 Chevy LS 4.8L & 5.3L
$7869
Ships on 10/19/2026
Lowest Price GuaranteeChevy LS Flat Top Pistons
- Hypereutectic Piston With Anodized Crown
- 2010-14 Chevy LS 4.8L & 5.3L
- 3.780" Bore
- Flat Top With 2 Valve Reliefs
- 1/Pkg
Technical Specs: - Bore: 3.780"
- Compression Height: 1.328"
- Flat Top: With 2 Valve Reliefs
- Pin Size: 0.9430" Full Floating
- Ring Pack:1.2mm; 1.5mm; 3.0mm
- STD Oversizes:.5mm;.75mm; 1.0mm
- Pin Location: Center
- O.E. Assembly #:19208675
- Applicable Vin Codes:0,3,4,7,A,J,M,P
- Reinforced top lands
- Coated skirts
- Floating wrist pins where applicable
- Application specific aluminum alloys
- Diamond finished skirts
- Pin hole accurate to +/- .0001
Silv-O-Lite pistons are engineered to offer the best bang for your hard earned bucks. Each Silv-O-Lite piston is manufactured from cast aluminum and then machined to produce a unique diamond finish, all to exacting skirt tolerances. It is then heat-treated and machined for strength and durability, tighter piston-to-cylinder wall clearances, and longer piston life.
Features:Part TypePiston
Product LineUEM Pistons Silv-O-Lite Hypereutectic Chevy LS Pistons
BrandUNITED ENGINE MACHINE
Package Height5.0
Package Width5.1
Package Length5.3
Weight1.75 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberS3526HCA.STD
Package Qty1
Package TypeEA
