Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-9907HC.040

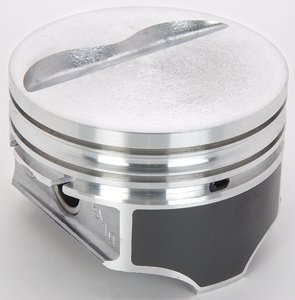

Claimer Hypereutectic Pistons Chevy 400 (Flat Top 2V 5cc)
$29864
Ships on 09/09/2026
Lowest Price GuaranteeChevy 400Flat Top Stroke: 3.750"
- Claimer Hypereutectic Pistons
- Chevy 400 (Flat Top 2V 5cc)
- Bore: 4.165 in. (+.040 in.)
- Rod: 5.565 in.
- Coated Skirts for Less Friction
- Piston Top: Flat top 2-valve relief
- Ring Grooves: 5/64", 5/64", 3/16"
- Press-fit pin
- Sold 1/pkg
Spec Variations - Chevy 350 Pistons
- For use with 5.7" rods
- 11.6:1 compression ratio with 55cc heads; 9.1:1 compression ratio with 76cc heads
- Chevy 400 Pistons
- For use with 5.565" rods
- 13.1:1 compression ratio with 55cc heads; 10.3:1 compression ratio with 76cc heads
- For use with 5.7" rods
These Claimer pistons are ideal for racers on a budget: a cross between the economical Silvolite line & the high-performance KB line. By combining a hypereutectic alloy with the permanent mold process, the piston is thermally-efficient and strong yet lightweight. Tighter piston-to-wall clearances offer better ring seal & longevity.
Shared Specifications
Part TypePiston
Product LineClaimer Hypereutectic Pistons
BrandUNITED ENGINE MACHINE
Package Height4.9
Package Width9.5
Package Length18.9
Weight13.75 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number9907HC.040
Package Qty1
Package TypeEA
