Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC611.060

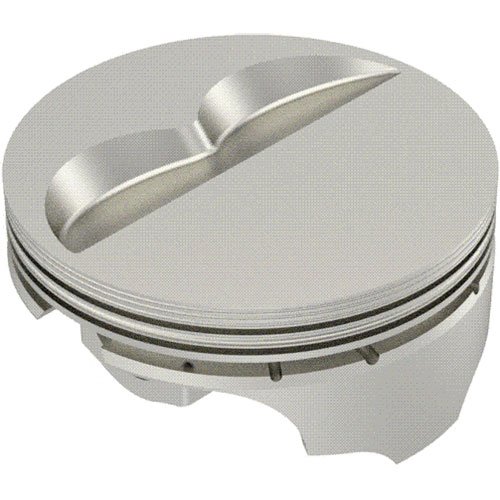

Chevy 434ci Forged Pistons Flat Top
$91103
Ships on 09/11/2026
Lowest Price GuaranteeChevy 434ciFlat Top Pistons Use w/6.00" Connecting Rods
- Chevy 305ci Forged Pistons
- Flat Top
- 4.125" Bore (+.060'')
- Use w/6.00" Connecting Rod & 4.000" Crank Stroke
- Comp. Ratio: 12.0/64cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.125"
- Crankshaft Stroke: 4.000"
- Connecting Rod Length: 6.00"
- Deck Height: 9.025'
- Compression Height: 1.000'
- Pin Size: 0.927' x 2.500'
- Pin Location: Centered
- Flat Top: -3.2cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.225' Depth / 2.000' Diameter
- Exhaust Valve Relief: 0.225' Depth / 1.680' Diameter
- Top Landing Height: 0.206'
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3/.0mm Bottom
- Gram Weight: 388/119
- Compression Ratio: 12.0/64cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.2
Package Length18.2
Weight10.76 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC611.060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
