Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC694.STD

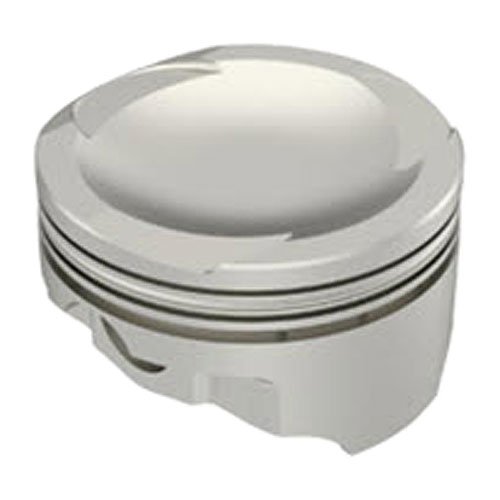

ICON Premium Forged Ford Modular Stroker 4.9L 3V Piston Set 3.551" Bore
$79342
Ships on 09/09/2026
Lowest Price GuaranteeFord Stroker 4.9L 3V18.1cc Spherical Dish Pistons
- Ford Modular Stroker 4.9L 3V Forged Pistons
- 18.1cc Dish
- 3.551" Bore (Standard)
- C/R: 10.1/42cc; 9.0/51cc; 8.8/53cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 3.5512" (Standard Bore Dimension)
- Crankshaft Stroke: N/A
- Connecting Rod Length: N/A
- Deck Height: 8.937" (4.6L)
- Compression Height: 1.200"
- Pin Size: 0.866" x 2.250"
- Pin Location: N/A
- Effective Head Volume: -18.1cc (Spherical Dish)
- Intake Valve Relief: 0.000" Depth / 0.000" Diameter
- Exhaust Valve Relief: 0.000" Depth / 0.000" Diameter
- Top Landing Height: N/A
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3.0mm Bottom
- Gram Weight: 350/95 (Piston/Pin)
- Compression Ratio: 10.1:1 w/42cc Heads; 9.0:1 w/51cc Heads; 8.8:1 w/53cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC694.STD
Package Qty1
Package TypeEA
