Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC717.080

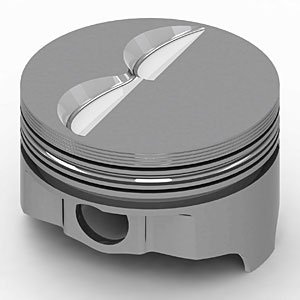

Chevy 350ci Forged Pistons Flat Top
$72509
Ships on 09/08/2026
Lowest Price GuaranteeChevy 350ciFlat Top Pistons Use w/5.700'' Connecting Rods
- Chevy 350ci Forged Pistons
- Flat Top
- 4.080'' Bore (+.080'')
- Use w/5.700'' Connecting Rod & 3.480'' Crank Stroke
- Comp. Ratio: 11.2/58cc; 10.4/64cc; 9.1/76cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.080'
- Crankshaft Stroke: 3.480'
- Connecting Rod Length: 5.700'
- Deck Height: 9.025'
- Compression Height: 1.565'
- Pin Size: 0.927' x 2.750'
- Pin Location: Centered
- Flat Top: -4.9cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.264' Depth / 2.200' Diameter
- Exhaust Valve Relief: 0.264' Depth / 1.880' Diameter
- Top Landing Height: 0.222'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 499/132
- Compression Ratio: 11.2:1 w/58cc Heads; 10.4:1 w/64cc Heads; 9.1:1 w/76cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.1
Package Width9.3
Package Length18.1
Weight12.58 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC717.080
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
