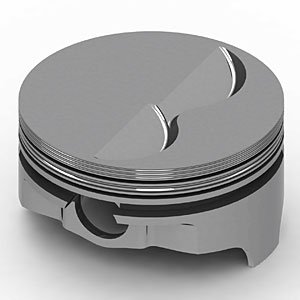

Chevy 383ci Forged Pistons Flat Top

Name: Chevy 383ci Forged Pistons Flat Top
Brand: UNITED ENGINE MACHINE
SKU: 648-IC728.030
Price: 736.87 USD
Availability: InStock

^$736⁸⁷

Ships on 09/09/2026

Lowest Price Guarantee

Chevy 383ci

Flat Top Pistons

Use w/5.700'' Connecting Rods

Use with Chevy 350ci Block and 400ci Crankshaft

Flat Top
4.030'' Bore (+.030'')
Use w/5.700'' Connecting Rod & 3.750'' Crank Stroke
Comp. Ratio: 12.0/58cc; 11.1/64cc; 9.8/76cc
8/pkg

Technical Specs:
Alloy: Premium High Ductility 2618
Bore: 4.030'
Crankshaft Stroke: 3.750'
Connecting Rod Length: 5.700'
Deck Height: 9.025'
Compression Height: 1.433'
Pin Size: 0.927' x 2.750'
Pin Location: Centered
Flat Top: -4.9cc 2 Symmetrical Valve Reliefs
Intake Valve Relief: 0.264' Depth / 2.200' Diameter
Exhaust Valve Relief: 0.264' Depth / 1.880' Diameter
Top Landing Height: 0.222'
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Gram Weight: 476/132
Compression Ratio: 12.0:1 w/58cc Heads; 11.1:1 w/64cc Heads; 9.8:1 w/76cc
Use with 350ci block and 400ci crankshaft. This is a stroked 350ci chevy combination.

Part TypePiston

BrandUNITED ENGINE MACHINE

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberIC728.030

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
