Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC743.STD

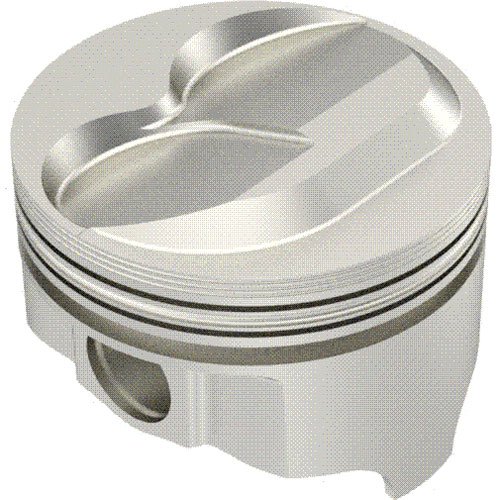

ICON Premium Forged Small Block Chrysler 360ci Piston Set 4.000" Bore
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chrysler 360ciSolid Dome Pistons Use w/6.123" Connecting Rods
- Small Block Chrysler 360ci Forged Pistons
- Solid Dome 2V
- 4.000" Bore (STD)
- 6.123" Connecting Rod
- 3.580'' Crank Stroke
- -11.2cc Head Volume
- Comp. Ratio: 14.1/60cc; 13.0/65cc; 12.1/70cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.000"
- Crankshaft Stroke: 3.580'
- Connecting Rod Length: 6.123"
- Deck Height: 9.599'
- Compression Height: 1.675'
- Pin Size: 0.9842' x 2.750"
- Pin Location: Centered
- Solid Dome: 2 Valve Reliefs
- Effective Head Volume: -11.2cc
- Intake Valve Relief: 0.266' Depth / 2.250' Diameter
- Exhaust Valve Relief: 0.274' Depth / 1.820' Diameter
- Top Landing Height: 0.280'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 492/118
- Compression Ratio: 14.1:1 w/60cc Heads; 13.0:1 w/65cc Heads; 12.1 w/70cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC743.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
