Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC745.030

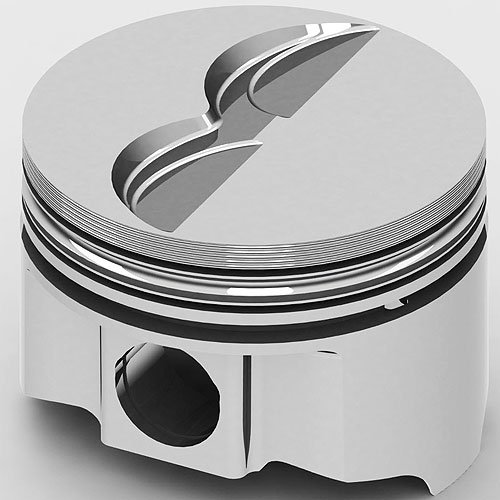

Chrysler 408ci FHR Forged Pistons Step Dish Top 2V
$75303
Ships Tomorrow
Lowest Price GuaranteeChrysler 408ciStep Dish Top Pistons Use w/6.123'' Connecting Rods
- Chrysler 408ci FHR Forged Pistons
- Step Dish Top 2V
- 4.000'' Bore (+.030'')
- Use w/6.123'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 10.2/62cc; 9.6/68cc; 9.3/72cc
- 8/pkg
Technical Specs: - Alloy: Premium 4032 Alloy
- Bore: 4.030'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.123'
- Deck Height: 9.599'
- Compression Height: 1.465'
- Pin Size: 0.9842'
- Pin Location: Centered
- Step Dish Top: -20.5cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.270'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 517/118
- Compression Ratio: 10.2:1 w/62cc Heads; 9.6:1 w/68cc Heads; 9.3:1 w/72cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.3
Package Length18.1
Weight12.12 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC745.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
