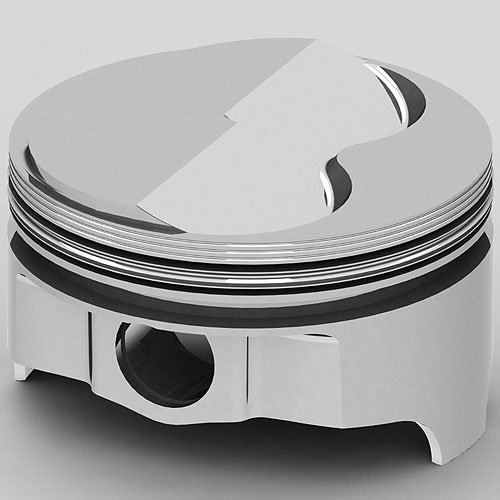

Ford 302ciDome Top Pistons
- Ford 302ci Forged Piston
- Solid Dome Top .150''
- 4.000'' Bore
- Use w/5.400'' Connecting Rod & 3.000'' Crank Stroke
- Comp. Ratio: 12.3/54cc; 11.5/58cc; 10.6/64cc
- 1/pkg
This piston is based and intended for use on the Windsor-based Small Block Ford.
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.000'
- Crankshaft Stroke: 3.000'
- Connecting Rod Length: 5.400'
- Deck Height: 8.206'
- Compression Height: 1.298'
- Pin Size: 0.927' x 2.750'
- Pin Location: Centered
- Flat Top: 6.8cc 2 Valve Reliefs
- Intake Valve Relief: .266' Depth / 2.120' Diameter
- Exhaust Valve Relief: .254' Depth / 1.880' Diameter
- Top Landing Height: 0.229'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 459/131
- Compression Ratio: 12.3:1 w/54cc Heads; 11.5:1 w/58cc Heads; 10.6:1 w/64cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.4
Package Width5.6
Package Length5.9
Weight1.79 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC746.STD
Package Qty1
Package TypeEA
