Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC746.STD

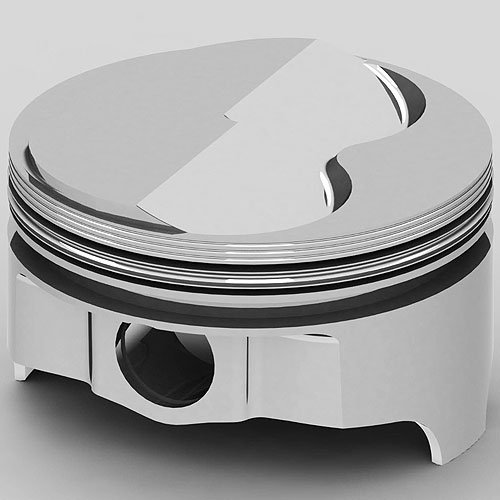

Ford 302ci Forged Pistons Solid Dome Top .150"
$79348
Ships on 09/04/2026
Lowest Price GuaranteeFord 302ciDome Top Pistons
- Ford 302ci Forged Pistons
- Solid Dome Top .150''
- 4.000'' Bore
- Use w/5.400'' Connecting Rod & 3.000'' Crank Stroke
- Comp. Ratio: 12.3/54cc; 11.5/58cc; 10.6/64cc
- 8/pkg
This piston is based and intended for use on the Windsor-based Small Block Ford.
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.000'
- Crankshaft Stroke: 3.000'
- Connecting Rod Length: 5.400'
- Deck Height: 8.206'
- Compression Height: 1.298'
- Pin Size: 0.927' x 2.750'
- Pin Location: Centered
- Flat Top: 6.8cc 2 Valve Reliefs
- Intake Valve Relief: .266' Depth / 2.120' Diameter
- Exhaust Valve Relief: .254' Depth / 1.880' Diameter
- Top Landing Height: 0.229'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 459/131
- Compression Ratio: 12.3:1 w/54cc Heads; 11.5:1 w/58cc Heads; 10.6:1 w/64cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.3
Package Length18.1
Weight11.12 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC746.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
