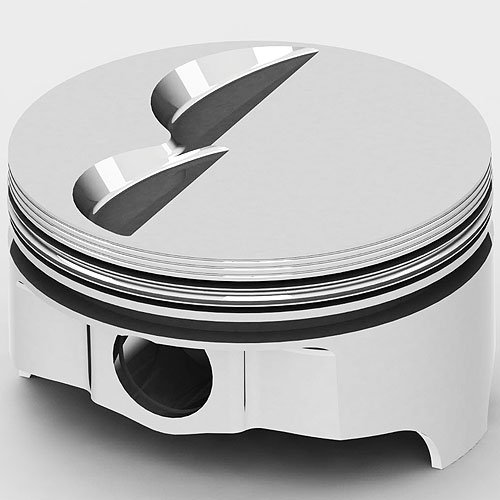

Ford 302ci Forged Pistons Flat Top 2V

Name: Ford 302ci Forged Pistons Flat Top 2V
Brand: UNITED ENGINE MACHINE
SKU: 648-IC747.STD
Price: 793.48 USD
Availability: InStock

^$793⁴⁸

Ships on 09/04/2026

Lowest Price Guarantee

Ford 302ci

Flat Top Pistons

Flat Top 2V
4.000'' Bore
Use w/5.400'' Connecting Rod & 3.000'' Crank Stroke
Comp. Ratio: 10.3/54cc; 9.8/58cc; 9.1/64cc
8/pkg

This piston is based and intended for use on the Windsor-based Small Block Ford.
Technical Specs:
Alloy: Premium High Ductility 2618
Bore: 4.000'
Crankshaft Stroke: 3.000'
Connecting Rod Length: 5.400'
Deck Height: 8.206'
Compression Height: 1.298'
Pin Size: 0.927' x 2.750'
Pin Location: Centered
Flat Top: -4.8cc 2 Valve Reliefs
Intake Valve Relief: .266' Depth / 2.120' Diameter
Exhaust Valve Relief: .254' Depth / 1.880' Diameter
Top Landing Height: 0.229'
Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
Gram Weight: 428/131
Compression Ratio: 10.3:1 w/54cc Heads; 9.8:1 w/58cc Heads; 9.1:1 w/64cc

Part TypePiston

BrandUNITED ENGINE MACHINE

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberIC747.STD

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations
