Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC756.STD

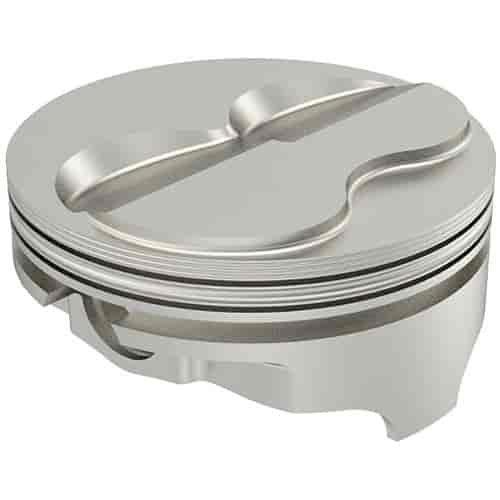

ICON Forged Piston - Chevy 400 Rod 6.000 Solid Dome -6.3cc 2V
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 400ciDome Top Pistons Use w/6.000" Connecting Rods
Chevy 400ci FHR Forged PistonsSolid Dome -6.3cc 2V 4.125" Bore Standard Use w/6.000" Connecting Rod & 3.750" Stroke Comp. Ratio: 14.8/58cc; 13.5/64cc; 11.6/76cc Set Of 8
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.125' (Standard)
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.000'
- Deck Height: 9.025'
- Compression Height: 1.133'
- Pin Size: 0.927'
- Pin Location: Centered
- Dome Top: -6.3cc 2 Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 483/132
- Compression Ratio: 14.8:1 w/58cc Heads; 13.5:1 w/64cc Heads; 11.6:1 w/76cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.9
Package Width10.9
Package Length18.4
Weight11.63 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC756.STD
Package Qty1
Package TypeEA
