Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC765KTD.060

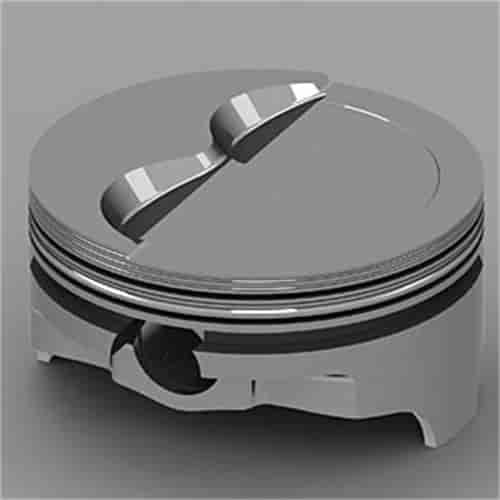

Chevy 353ci Forged Pistons Flat Top
$90128
Ships on 09/09/2026
Lowest Price GuaranteeChevy 353ciFlat Top Pistons Use w/6.000'' Connecting Rods
Chevy 353ci Forged Piston & Rings KitFlat Top 4.185'' Bore (+.060'') Use w/6.000'' Connecting Rod & 3.250'' Crank Stroke Comp. Ratio: 11.1/58cc; 10.3/64cc; 9.1/76cc 8/pkg
Technical Specs:
- Alloy: Premium High Ductility 2618
- Bore: 4.185'
- Crankshaft Stroke: 3.250'
- Connecting Rod Length: 6.000'
- Deck Height: 9.025'
- Compression Height: 1.380'
- Pin Size: 0.927' x 2.750'
- Pin Location: Centered
- Flat Top: 4.8cc
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 508/132
- Compression Ratio: 11.1:1 w/58cc Heads; 10.3:1 w/64cc Heads; 9.1:1 w/76cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height7.0
Package Width9.75
Package Length18.25
Weight10.0 PG
Part CategoryPerformance Parts
Vendor Part NumberIC765KTD.060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
