![Premium Forged Piston & Ring Set [Big Block Chevy 454 ci]](https://www.jegs.com/images/mini_750/600/648/648-ic769ktd.040.jpg)
Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC769KTD.040

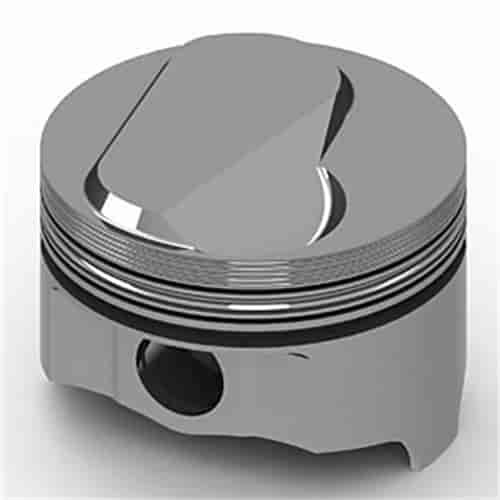

Premium Forged Piston & Ring Set [Big Block Chevy 454 ci]
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 454ciDome Top Pistons Use w/6.135'' Connecting Rods
Premium Forged Piston & Ring SetBig Block Chevy 454 ci Open Chamber Hollow Dome 4.290 in. Bore (+.040) 4.000 in. Stroke 6.135 in. Rod -43 cc Head Volume Comp. Ratio: 12.0/119cc Set of 8
Technical Specs:
- Alloy: Premium High Ductility 2618
- Bore: 4.290 in.
- Crankshaft Stroke: 4.000 in.
- Connecting Rod Length: 6.135 in.
- Deck Height: 9.800 in.
- Compression Height: 1.645 in.
- Pin Size: 0.990 x 2.750 in.
- Pin Location: Centered
- Effective Head Volume: -43 cc
- Intake Valve Relief: 0.275 in. Depth / 2.420 in. Diameter
- Top Landing Height: 0.360 in.
- Ring Grooves: 1/16 Top; 1/16 Middle; 3/16 ' Bottom
- Gram Weight: 690/141
- Compression Ratio: 12.0:1/119cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height6.9
Package Width9.9
Package Length18.6
Weight18.16 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC769KTD.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
