Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC778.040

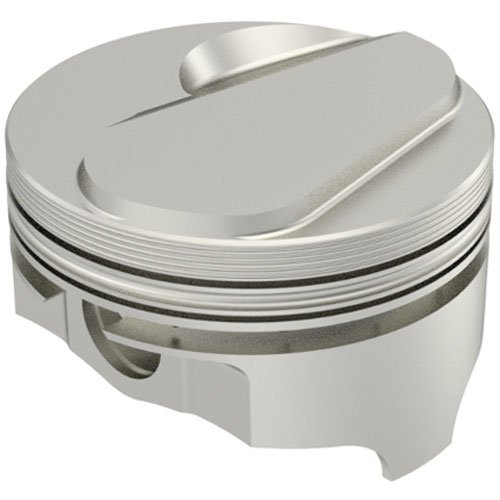

ICON Premium Forged Big Block Chevy 454ci Piston Set 4.290" Bore
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 454ciDome Top Pistons Use w/6.385'' Connecting Rods
- Big Block Chevy 454ci Forged Pistons
- Hollow Dome 2V
- 4.250" Bore (+.040)
- 6.385" Connecting Rod
- 4.000" Crank Stroke
- -18cc Head Volume
- Closed Chamber Design
- Comp. Ratio: 11.7/96.5cc; 9.9/115cc; 9.5/119cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.290"
- Crankshaft Stroke: 4.000"
- Connecting Rod Length: 6.385"
- Deck Height: 9.800'
- Compression Height: 1.395'
- Pin Size: 0.990' x 2.750"
- Pin Location: Centered
- Effective Head Volume: -18cc
- Intake Valve Relief: 0.285' Depth / 2.300' Diameter
- Exhaust Valve Relief: 0.000" Depth / 0.000" Diameter
- Top Landing Height: 0.222'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 591/141
- Compression Ratio: 11.7:1 w/96.5cc Heads; 9.9:1 w/115cc Heads; 9.5w/119cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC778.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
