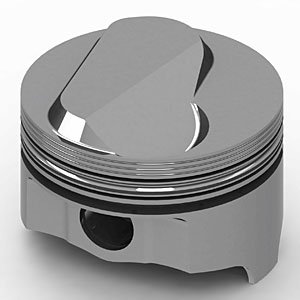

Chevy 454ciDome Top Pistons Use w/6.135'' Connecting Rods
- Chevy 454ci Forged Piston
- Hollow Dome Top .290''
- 4.280'' Bore (+.030'')
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 12.9/96.5cc; 10.7/108cc; 10.3/119cc
- 1/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.280'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Hollow Dome Top: .290' 27cc 1 Valve Relief (Closed Chamber Head)
- Intake Valve Relief: 0.286' Depth / 2.300' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.365'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 673/141
- Compression Ratio: 12.9:1 w/96.5cc Heads; 10.7:1 w/108cc Heads; 10.3:1 w/119cc
- Designed for O.E. and Edelbrock style cylinder heads
United Engine and Machine Company is proud to offer the Icon line of forged pistons. Icon brings the same quality and performance you've come to expect from other United Engine brands while adding a new lightweight forged design. No matter your high performance application, there is an Icon piston for you.
Features:
- High ductility 2618 alloy
- Perfect for Nitrous, Turbocharged and Supercharged Apps
- Dual forced pin oiling on most applications
Show More
- Lateral gas porting on higher compression ratios
- Fully machined with deep valve pockets
- Second land accumulator grooves
- Top land mini groove technology
- Diamond finished skirts
- Triple wound spiral locks
- Spacer rings included in short compression heights that intersect the wrist pin bore
- Sold in Sets (except when noted as 1 piston per package)
Click here for reference guide to piston top designs
Part TypePiston
Product LineUEM Pistons Icon Premium Forged Series Big Block Chevy Pistons
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC782.030
Package Qty1
Package TypeEA
