Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC782KTD.STD

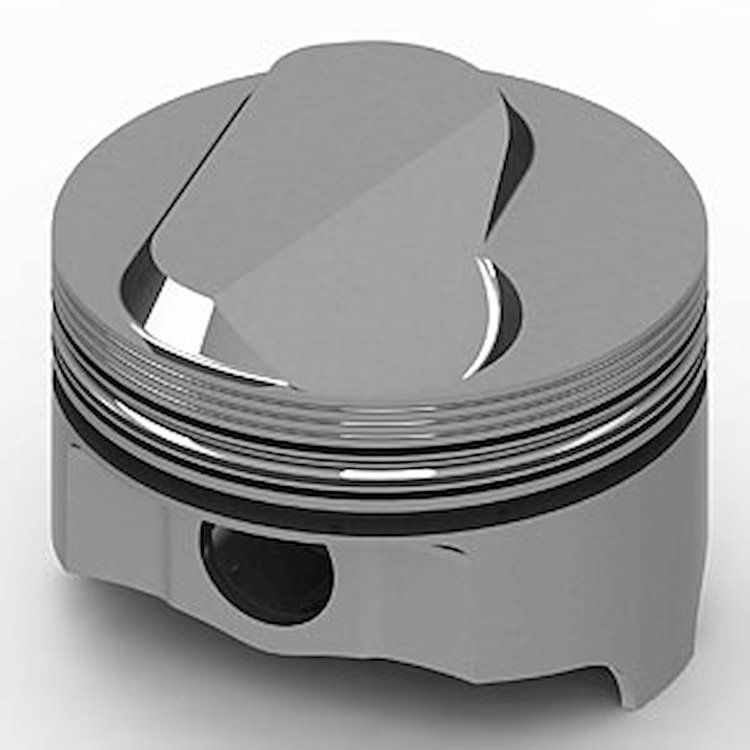

Chevy 454ci Forged Pistons Hollow Dome Top .290"
$88501
Ships on 09/14/2026
Lowest Price GuaranteeChevy 454ciDome Top Pistons Use w/6.135'' Connecting Rods
Chevy 454ci Forged Piston and Ring KitHollow Dome Top .290'' 4.250'' Bore (Standard) Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke Comp. Ratio: 12.9/96.5cc; 10.7/108cc; 10.3/119cc 8/pkg
Technical Specs:
- Alloy: Premium High Ductility 2618
- Bore: 4.280'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Hollow Dome Top: .290' 27cc 1 Valve Relief (Closed Chamber Head)
- Intake Valve Relief: 0.286' Depth / 2.300' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.365'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 673/141
- Compression Ratio: 12.9:1 w/96.5cc Heads; 10.7:1 w/108cc Heads; 10.3:1 w/119cc
- Designed for O.E. and Edelbrock style cylinder heads
- Includes ductile iron moly ring set 648-4250BD8
Interchange Part Numbers: Speed Pro: L2349F
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height8.5
Package Width9.1
Package Length21.0
Weight17.34 PG
Part CategoryPerformance Parts
Vendor Part NumberIC782KTD.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
