Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

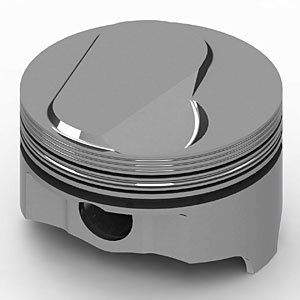

Chevy 489ciDome Top Pistons Use w/6.135'' Connecting Rods
- Chevy 489ci Forged Piston
- Solid Dome Top .130''
- 4.280'' Bore (+.030'')
- Use w/6.135'' Connecting Rod & 4.250'' Crank Stroke
- Comp. Ratio: 11.7/96.5cc; 9.9/108cc; 9.6/119cc
- 1/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 4.280'
- Crankshaft Stroke: 4.250'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.520'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .130' 12cc 1 Valve Relief (Closed Chamber Head)
- Intake Valve Relief: 0.286' Depth / 2.300' Diameter
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.350'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 623/141
- Compression Ratio: 11.7:1 w/96.5cc Heads; 9.9:1 w/108cc Heads; 9.6:1 w/119cc
- Designed for O.E. and Edelbrock style cylinder heads.
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC786.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
