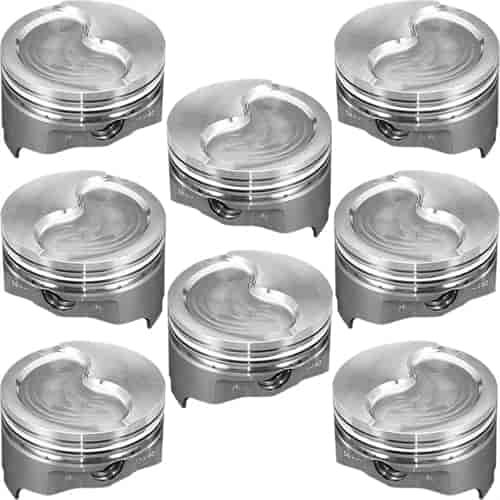

ICON Premium Forged Big Block Chrysler 400 "B" 456ci / 517ci Pistons Step Dish Top 4.402" Bore

Name: ICON Premium Forged Big Block Chrysler 400 "B" 456ci / 517ci Pistons Step Dish Top 4.402" Bore
Brand: UNITED ENGINE MACHINE
SKU: 648-IC837.060
Price: 901.65 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chrysler "B" 451ci / 511ci

Step Dish Top Pistons

451ci Use w/ 6.768" Connecting Rods & 3.750" Crank Stroke

511ci Use w/ 6.535" Connecting Rods & 4.250" Crank Stroke

Big Block Chrysler "B" 456ci / 517ci Forged Pistons

Step Dish Top

4.402" Bore (+.060")

456ci - 6.768" Rod & 3.750" Stroke; C/R 10.5/75cc; 10.2/78cc; 9.4/88cc

517ci - 6.535" Rod & 4.250" Stroke; C/R 11.8/75cc; 11.5/78cc; 10.5/88cc

8/pkg.

Technical Notes:

For use with 400 "B" blocks
Stock standard 400 cylinder bore is 4.342" with 3.380" crankshaft stroke
4.402" Bore + 3.750 Stroke = 456ci
4.402" Bore + 4.250 Stroke = 517ci

Technical Specs:

Alloy: Premium High Ductility 2618
Bore: 4.402"
Crankshaft Stroke: 3.750"
Connecting Rod Length: 6.768"
Deck Height: 9.980" (RB)
Compression Height: 1.322"
Pin Size: 0.9900' x 3.000"
Pin Location: Centered
Flat Top: 2 Valve Reliefs
Effective Head Volume: 12.0cc
Intake Valve Relief: 0.215" Depth / 2.300" Diameter
Exhaust Valve Relief: 0.197" Depth / 1.880" Diameter
Top Landing Height: 0.296"
Ring Grooves: 1/16" Top; 1/16" Middle; 3/16" Bottom
Gram Weight: 709/158
456ci Compression Ratio: 10.5:1 w/75cc Heads; 10.2:1 w/78cc Heads; 9.4:1 w/88cc
517ci Compression Ratio: 11.8:1 w/75cc Heads; 11.5:1 w/78cc Heads; 10.5:1 w/88cc

United Engine and Machine Company is proud to introduce their new Icon line of forged pistons. Icon brings the same quality and performance you've come to expect from other United Engine brands while adding a new lightweight forged design. No matter your high performance application, there is an Icon piston for you.

Features:

High ductility 2618 alloy
Perfect for Nitrous, Turbocharged and Supercharged Apps
Dual forced pin oiling on most applications

Lateral gas porting on higher compression ratios
Fully machined with deep valve pockets
Second land accumulator grooves
Top land mini groove technology
Diamond finished skirts
Triple wound spiral locks
Spacer rings included in short compression heights that intersect the wrist pin bore

Part TypePiston

Product LineUEM Pistons Icon Premium Forged Series Big Block Chrysler Pistons

BrandUNITED ENGINE MACHINE

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part NumberIC837.060

Package Qty1

Package TypeEA
