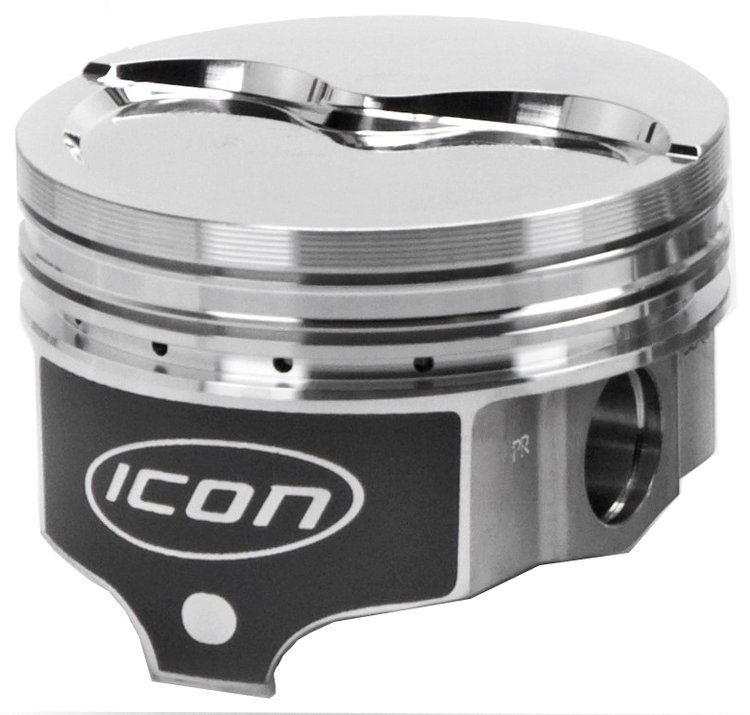

ICON Premium Forged Big Block Chrysler 440 RB 493 ci. Pistons Step Dish Top 4.350 in. Bore
InfoVehicle Info Needed
UNITED ENGINE MACHINEPART NUMBER: 648-IC840.030

ICON Premium Forged Big Block Chrysler 440 RB 493 ci. Pistons Step Dish Top 4.350 in. Bore

$77319
ShippingShips on 09/17/2026
Lowest PriceLowest Price Guarantee

Chrysler RB 493 ci. (440 Block)
  • Step Dish Top Pistons
  • Use w/6.768 in. Connecting Rods & 4.150 in. Crank Stroke
    • ICON Premium Forged Big Block Chrysler 440 RB 493 ci. Pistons
  • Bore: 4.350 in. (+.030 in.)
  • Head Type: Step Dish (+23.7 cc) w/2 Valve Reliefs
  • Comp. Height: 1.869 in.
  • Rod: 6.768 in.
  • Stroke: 4.150 in.
  • Rings: 1/16, 1/16, 3/16 in.
  • Set of 8

    ICON Premium Forged Big Block Chrysler 440 RB 493 ci. Pistons Specifications:

    • Engine Family: Mopar 440 Big Block RB
    • Engine Size: 493 ci.
    • Exhaust Valve Depth/Diameter: .199/1.880 in.
    • Intake Valve Depth/Diameter: .215/2.300 in.
    • Piston Material: Forged 2618 Alloy
    • Part TypePiston
    BrandUNITED ENGINE MACHINE
    Package Height5.1
    Package Width10.6
    Package Length21.0
    Weight16.6 PG
    Part CategoryPerformance Parts
    Piston Ring Thickness (In.)1/16 x 1/16 x 3/16
    Wrist Pin StyleFull Floating
    QuantitySet of 8
    Piston MaterialForged
    Pin Diameter0.99 in (25.1 mm)
    Part FitmentSemi Universal
    Piston StyleDish, with two valve reliefs
    Bore4.32 in (109.728 mm)
    Vendor Part NumberIC840.030
    Package Qty1
    Package TypeEA
