Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC883.005

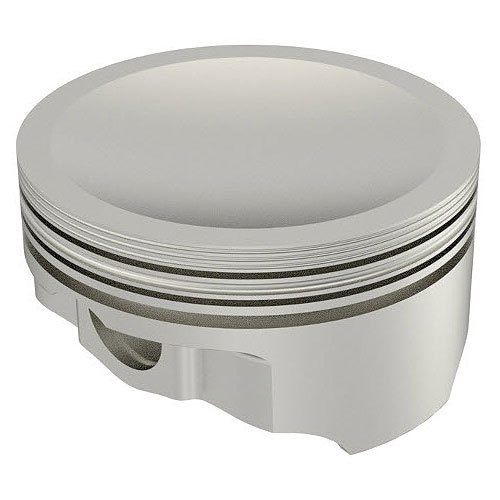

ICON Premium Forged Ford Modular 4.6L 5.4L 2/4V Piston Set 3.556" Bore
$79348
Ships Tomorrow
Lowest Price GuaranteeFord 4.6L / 5.4L 2/4V10cc Spherical Dish Pistons
- Ford Modular 4.6L / 5.4L 2/4V Forged Pistons
- 10cc Dish
- 3.556" Bore (+.005")
- 4.6L 5.933" Rod; 3.543" Stroke
- 4.6L C/R: 10.8/42cc; 10.3/46cc; 9.5/52cc
- 5.4L 6.657" Rod; 4.165" Stroke
- 5.4L C/R: 9.8/42cc; 9.4/46cc; 8.8/52cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 3.556" (3.5512" Standard Bore Dimension)
- Crankshaft Stroke: 3.543" (4.6L); 4.165" (5.4L)
- Connecting Rod Length: 5.933" (4.6L); 6.657" (5.4L)
- Deck Height: 8.937" (4.6L); 10.078" (5.4L - Note: Piston sits 0.118" below deck.)
- Compression Height: 1.220"
- Pin Size: 0.866" x 2.250"
- Pin Location: Centered
- Effective Head Volume: -10.0cc (Spherical Dish)
- Intake Valve Relief: 0.000" Depth / 0.000" Diameter
- Exhaust Valve Relief: 0.000" Depth / 0.000" Diameter
- Top Landing Height: 0.225"
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3.0mm Bottom
- Gram Weight: 345/95 (Piston/Pin)
- 4.6L Compression Ratio: 10.8:1 w/42cc Heads; 10.3:1 w/46cc Heads; 9.5:1 w/52cc
- 5.4L Compression Ratio: 9.8:1 w/42cc Heads; 9.4:1 w/46cc Heads; 8.8:1 w/52cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC883.005
Package Qty1
Package TypeEA
