![Ford 281ci Forged Piston Kit [Dish Top 2V/4V]](https://www.jegs.com/images/mini_750/600/648/648-ic884ktd.005.jpg)
Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC884KTD.005

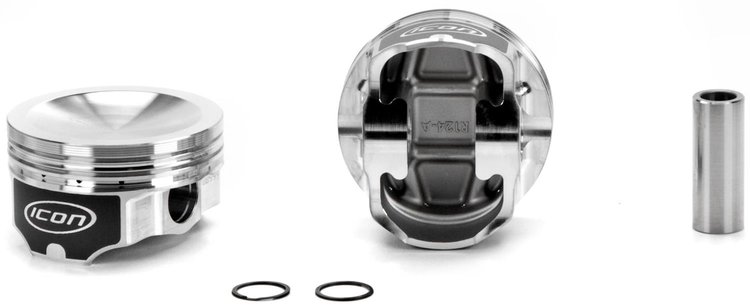

Ford 281ci Forged Piston Kit [Dish Top 2V/4V]
$69707$823.95You Save$126.88
1 left in stock
Ships on Nov 02, 2026
Lowest Price GuaranteeFord 281ciDish Top Pistons
Ford 281ci Forged Piston KitDish Top 2V/4V 3.5512'' Bore (+.005'') Use w/5.933'' Connecting Rod & 3.543'' Crank Stroke Comp. Ratio: 9.9/42cc; 9.4/46cc; 8.7/52cc Set of 8
This piston is based and intended for use on the Ford Small Block 281 V8 Modular engine.
Technical Specs:
- Alloy: Premium High Ductility 2618
- Bore: 3.5512' (+.005)
- Crankshaft Stroke: 3.543'
- Connecting Rod Length: 5.933'
- Deck Height: 8.937'
- Compression Height: 1.22'
- Pin Size: 0.866' x 2.250'
- Pin Location: Centered
- Dish Top: 2 & 4 Valve Reliefs
- Top Landing Height: 0.225'
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3.0mm Bottom
- Compression Ratio: 9.9:1 w/42cc Heads; 9.4:1 w/46cc Heads; 8.7:1 w/52cc
Ford Small Block Windsor Based Pistons
United Engine and Machine Company is proud to introduce the Icon line of forged pistons. Icon brings the same quality and performance you've come to expect from other United Engine brands while adding a new lightweight forged design. No matter your high performance application, there is an Icon piston for you.
Features:
- High ductility 2618 alloy
- Perfect for Nitrous, Turbocharged and Supercharged Apps
- Dual forced pin oiling on most applications
Show More
- Lateral gas porting on higher compression ratios
- Fully machined with deep valve pockets
- Second land accumulator grooves
- Top land mini groove technology
- Diamond finished skirts
- Triple wound spiral locks
- Spacer rings included in short compression heights that intersect the wrist pin bore
- Sold in Sets (except when noted as 1 piston per package)
Click here for reference guide to piston top designs
Part TypePiston
Product LineUEM Pistons Icon Premium Forged Series Small Block Ford Pistons
BrandUNITED ENGINE MACHINE
Package Height5.5
Package Width9.9
Package Length22.2
Weight10.61 PG
Part CategoryPerformance Parts
Piston Head Volume (Cc)17
QuantitySet of 8
Piston MaterialForged
Part FitmentSemi Universal
Piston StyleDish, with four valve reliefs
Bore3.551 in (90.195 mm)
Vendor Part NumberIC884KTD.005
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
