Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC934.030

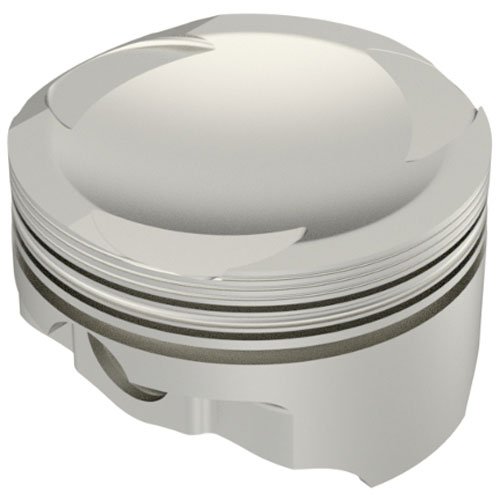

ICON Premium Forged Ford Modular 4.6L 5.4L 3V Piston Set 3.581" Bore
$79348
Ships Tomorrow
Lowest Price GuaranteeFord 4.6L / 5.4L 3V16.6cc Spherical Dish Pistons
- Ford Modular 4.6L / 5.4L 3V Forged Pistons
- 16.6cc Dish
- 3.581" Bore (+.030")
- 4.6L 5.933" Rod; 3.543" Stroke
- 4.6L C/R:10.1/42cc; 9.4/46cc; 8.8/52cc
- 5.4L 6.657" Rod; 4.165" Stroke
- 5.4L C/R: 9.1/42cc; 8.8/46cc; 8.3/52cc
- 8/pkg
Technical Specs: - Alloy: Premium High Ductility 2618
- Bore: 3.581" (3.5512" Standard Bore Dimension)
- Crankshaft Stroke: 3.543" (4.6L); 4.165" (5.4L)
- Connecting Rod Length: 5.933" (4.6L); 6.657" (5.4L)
- Deck Height: 8.937" (4.6L); 10.078" (5.4L - Note: Piston sits 0.118" below deck.)
- Compression Height: 1.220"
- Pin Size: 0.866" x 2.250"
- Pin Location: Centered
- Effective Head Volume: -16.6cc (Spherical Dish)
- Intake Valve Relief: 0.106" Depth / 1.538" Diameter
- Exhaust Valve Relief: 0.111" Depth / 1.678" Diameter
- Top Landing Height: 0.280"
- Ring Grooves: 1.5mm Top; 1.5mm Middle; 3.0mm Bottom
- Gram Weight: 368/95 (Piston/Pin)
- 4.6L Compression Ratio: 10.1:1 w/42cc Heads; 9.4:1 w/46cc Heads; 8.8:1 w/52cc
- 5.4L Compression Ratio: 9.1:1 w/42cc Heads; 8.8:1 w/46cc Heads; 8.3:1 w/52cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.3
Package Length18.1
Weight13.5 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC934.030
Package Qty1
Package TypeEA
