Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

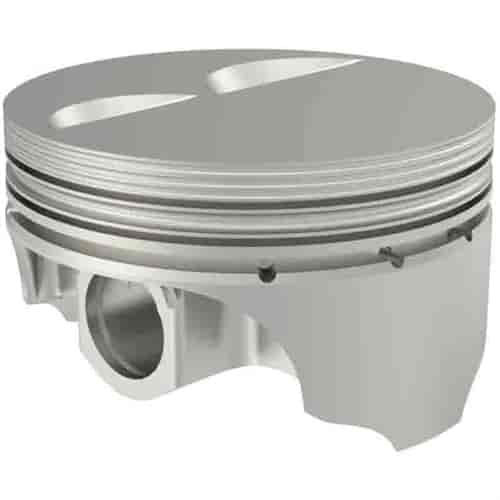

Chevy 350ciFlat Top Pistons Use w/5.700'' Connecting Rods
Icon Premium Forged PistonsSmall Block Chevy 350 Flat Top w/2 Valve Reliefs 4.030 in. Bore (+.030) Use w/5.700 in. Connecting Rod & 3.480 in.Crank Stroke Comp. Ratio: 11.6/58cc; 10.7/64cc; 9.4/76cc Set of 8
Technical Specs:
- Alloy: Premium High Ductility 2618
- Bore: 4.030 in.
- Crankshaft Stroke: 3.480 in.
- Connecting Rod Length: 5.700 in.
- Deck Height: 9.025 in.
- Compression Height: 1.565 in.
- Pin Size: 0.927 x 2.750 in.
- Pin Location: Centered
- Flat Top: -2.100cc 2 Symmetrical Shallow Valve Reliefs
- Intake Valve Relief: 0.264 in. Depth / 2.200 in. Diameter
- Exhaust Valve Relief: 0.264 in. Depth / 1.880 in. Diameter
- Top Landing Height: 0.222 in.
- Ring Grooves: 1/16 Top; 1/16 Middle; 3/16 in. Bottom
- Gram Weight: 452/102
- Compression Ratio: 11.6:1 w/58cc Heads; 10.7:1 w/64cc Heads; 9.4:1 w/76cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.9
Package Width9.7
Package Length18.9
Weight11.34 PG
Part CategoryPerformance Parts
Vendor Part NumberIC971.030
Package Qty1
Package TypeEA
