Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9918.040

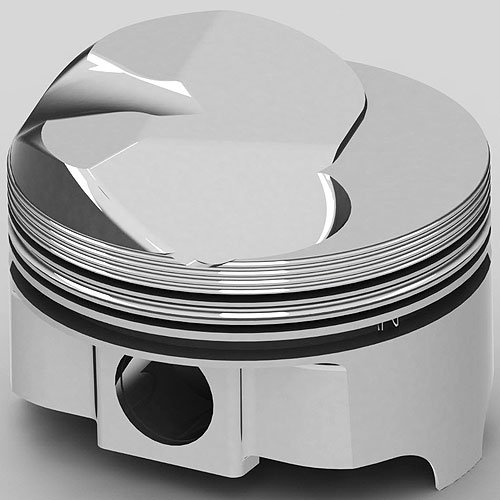

Chevy 454ci FHR Forged Pistons Solid Dome .500" (Open Chamber Design)
$70540
Ships on 09/14/2026
Lowest Price GuaranteeChevy 454ciDome Top Pistons
- Chevy 454ci FHR Forged Pistons
- Solid Dome .500'' (Open Chamber Design)
- 4.290'' Bore (+.040'')
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- 12.3:1/119cc Compression Ratio
- 8/pkg.
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.290'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .500' 44.7cc 1 Valve Relief (Open Chamber Design)
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.325'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 723/141
- Compression Ratio: 12.3:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height4.9
Package Width9.5
Package Length19.8
Weight16.71 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9918.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
