Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC9918.STD-1

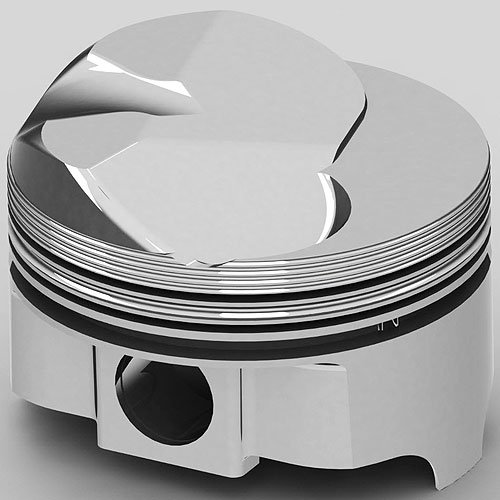

Chevy 454ci FHR Forged Piston Solid Dome .500" (Open Chamber Design)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 454ciDome Top Pistons
- Chevy 454ci FHR Forged Piston
- Solid Dome .500'' (Open Chamber Design)
- 4.250'' Bore
- Use w/6.135'' Connecting Rod & 4.000'' Crank Stroke
- 12.3:1/119cc Compression Ratio
- 1/pkg.
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.250'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.645'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .500' 44.7cc 1 Valve Relief (Open Chamber Design)
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.325'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 723/141
- Compression Ratio: 12.3:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC9918.STD
Package Qty1
Package TypeEA
