Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9923.STD-1

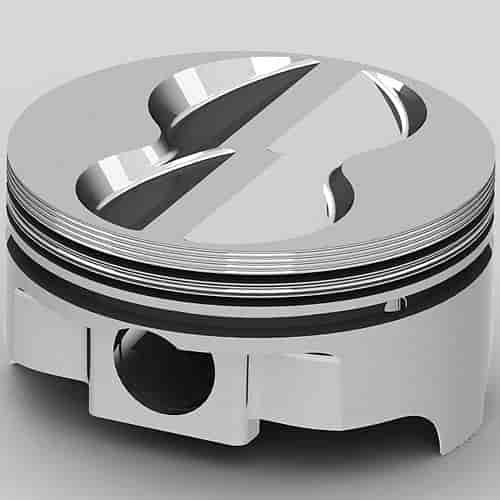

Ford 408ci Windsor FHR Forged Piston Flat Top 4V
$14959
Ships on 09/11/2026
Lowest Price GuaranteeFord 408ciFlat Top Pistons Use with Ford 351W Block
- Ford 408ci Windsor FHR Forged Piston
- Flat Top 4V
- 4.000'' Bore
- Use w/6.200'' Connecting Rod & 4.000'' Crank Stroke
- Comp. Ratio: 12.4/58cc; 11.8/64cc; 11.0/76cc
- 1/pkg
This piston is based and intended for use on the Windsor-based Small Block Ford. Use with Ford 351W block. Pre-71 blocks have a .020' shorter deck.
Technical Specs: - Alloy: Premium 4032 Alloy
- Bore: 4.000'
- Crankshaft Stroke: 4.000'
- Connecting Rod Length: 6.200'
- Deck Height: 9.500'
- Compression Height: 1.280'
- Pin Size: 0.9272' x 2.750' (SBC)
- Pin Location: Offset
- Flat Top: -11cc 4 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.222'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 446/132
- Compression Ratio: 12.4:1 w/58cc Heads; 11.8:1 w/64cc Heads; 11.0:1 w/76cc
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.0
Package Width5.0
Package Length5.1
Weight1.42 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC9923.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
