Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC9944.030-1

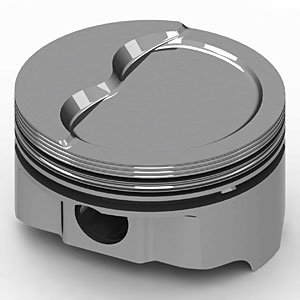

Chevy 400ci FHR Forged Piston Step Dish Top -23cc 2V
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 400ciDome Top Pistons Use w/5.700'' Connecting Rods
- Chevy 400ci FHR Forged Piston
- Step Dish Top -23cc 2V
- 4.155'' Bore (+.030'')
- Use w/5.700'' Connecting Rod & 3.750'' Crank Stroke
- Comp. Ratio: 10.3/58cc; 9.7/64cc; 8.7/76cc
- 1/pkg
Technical Specs: - Alloy: Premium 4032 Alloy
- Bore: 4.155'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 5.700'
- Deck Height: 9.025'
- Compression Height: 1.433'
- Pin Size: 0.927' x 2.750'
- Pin Location: Centered
- Step Dish Top: -23cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.337'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 518/132
- Compression Ratio: 10.3:1 w/58cc Heads; 9.7:1 w/64cc Heads; 8.7:1 w/76cc
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Vendor Part NumberSIC9944.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
