Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9947.STD

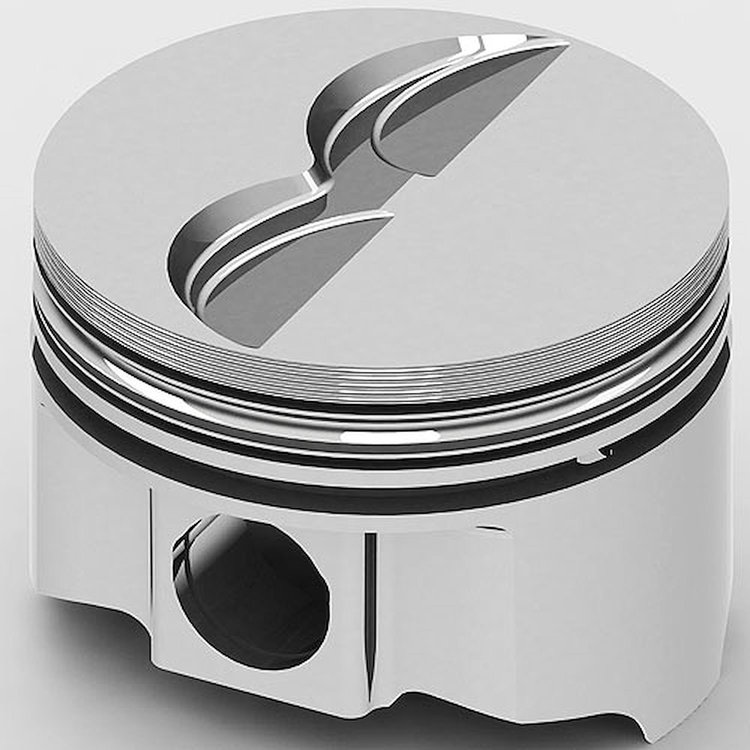

Chrysler 440ci FHR Forged Pistons Flat Top 2V
$70812
Ships on 09/09/2026
Lowest Price GuaranteeChrysler 440ciFlat Top Pistons Use w/6.768'' Connecting Rods
- Chrysler 440ci FHR Forged Pistons
- Flat Top 2V
- 4.320'' Bore
- Use w/6.768'' Connecting Rod & 3.750'' Crank Stroke
- Comp. Ratio: 9.4/72cc; 8.8/80cc; 8.2/90cc
- 8/pkg
Technical Specs: - Alloy: Premium 4032 Alloy
- Bore: 4.320'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.768'
- Deck Height: 10.725'
- Compression Height: 1.991'
- Pin Size: 1.094' x 3.000'
- Pin Location: Centered
- Flat Top: -5.6cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.270'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 686/190
- Compression Ratio: 9.4:1 w/72cc Heads; 8.8:1 w/80cc Heads; 8.2:1 w/90cc
- Note: This piston will be .090' below deck at TDC.
Interchange Part Numbers: Speed Pro: L2266F
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9947.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
