Product Discontinued
UNITED ENGINE MACHINEPART NUMBER: 648-IC9949.STD-1

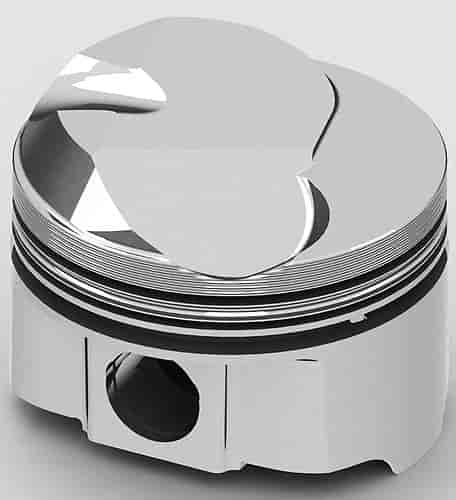

Chevy 396/402ci FHR Forged Piston Solid Dome .580" (Open Chamber Design)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Chevy 396/402ciDome Top Pistons
- Chevy 396/402ci FHR Forged Piston
- Solid Dome .580'' (Open Chamber Design)
- 4.125'' Bore (+.030'' 396; Standard 402)
- Use w/6.135'' Connecting Rod & 3.760'' Crank Stroke
- 10.6:1/119cc Compression Ratio
- 1/pkg.
Notes: For a 396ci engine (4.095" std bore), this piston will be a .030 over bore. Compression ratio will be 10.5 on 119cc head (Open chamber head).
Technical Specs: - Alloy: Premium 4032 Alloy
- Bore: 4.125'
- Crankshaft Stroke: 3.760'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.765'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .580' 41cc 1 Valve Relief (Open Chamber Design)
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.340'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 743/141
- Compression Ratio: 10.6:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSIC9949.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
