Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9950.STD

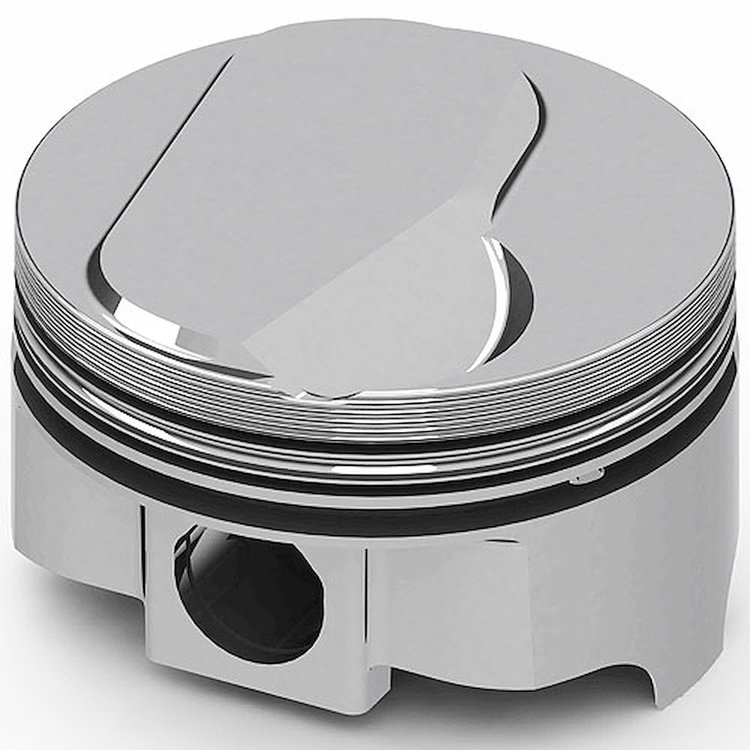

Chevy 427ci FHR Forged Pistons Solid Dome .124"
$72921
Ships on 09/04/2026
Lowest Price GuaranteeChevy 427ciDome Top Pistons
- Chevy 427ci FHR Forged Pistons
- Solid Dome .124''
- 4.250'' Bore
- Use w/6.135'' Connecting Rod & 3.760'' Crank Stroke
- 10.3:1/96.5cc; 9.5:1/105cc; 8.5:1/119cc Compression Ratio
- 8/pkg.
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.250'
- Crankshaft Stroke: 3.760'
- Connecting Rod Length: 6.135'
- Deck Height: 9.800'
- Compression Height: 1.765'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .124' 10.2cc 1 Valve Relief (Closed Chamber Design)
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.340'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 655/141
- Compression Ratio: 10.3:1 w/96.5cc Heads; 9.5:1 w/105cc Heads; 8.5:1 w/119cc Heads
Interchange Part Numbers: Speed Pro: L2300F
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height7.8
Package Width13.5
Package Length13.7
Weight11.92 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9950.STD
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
