Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9951.030

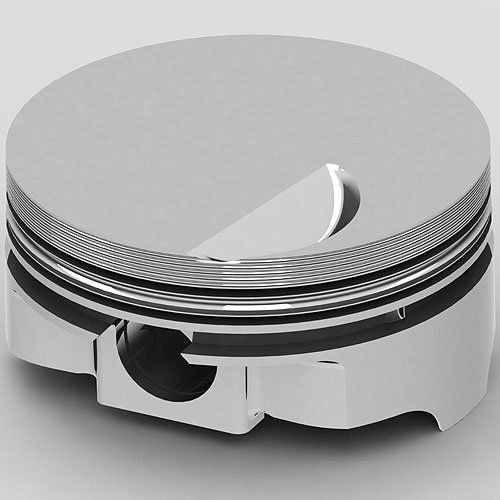

Chevy 489ci FHR Forged Pistons Flat Top
$70473
Ships Tomorrow
Lowest Price GuaranteeChevy 489ciFlat Top Pistons
- Chevy 489ci FHR Forged Pistons
- Flat Top
- 4.280'' Bore (+.030'')
- Use w/6.385'' Connecting Rod & 4.250'' Crank Stroke
- 10.2:1/96.5cc; 9.5:1/105cc; 8.6:1/119cc Compression Ratio
- 8/pkg.
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.280'
- Crankshaft Stroke: 4.250'
- Connecting Rod Length: 6.385'
- Deck Height: 9.800'
- Compression Height: 1.270'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Flat Top: -3cc 1 Valve Relief
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.320'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 527/141
- Compression Ratio: 10.2:1 w/96.5cc Heads; 9.5:1 w/105cc Heads; 8.6:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9951.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
