Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9953KTM.06

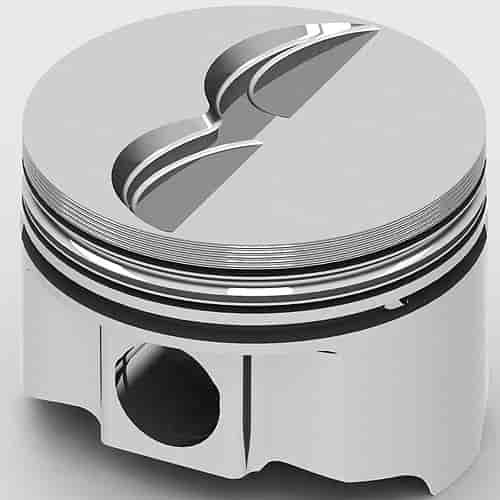

Chrysler 440ci FHR Forged Pistons & Rings Set Flat Top 2V
$78796
Ships on 09/17/2026
Lowest Price GuaranteeChrysler 440ciFlat Top Pistons Use w/6.768'' Connecting Rods
Chrysler 440ci FHR Forged Pistons & Rings Set Flat Top 2V 4.380'' Bore (+.060'') Use w/6.768'' Connecting Rod & 3.750'' Crank Stroke Comp. Ratio: 11.5/72cc; 10.6/80cc; 9.7/90cc 8/pkg
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.380'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.768'
- Deck Height: 10.725'
- Compression Height: 2.067'
- Pin Size: 1.094' x 3.000'
- Pin Location: Centered
- Flat Top: -5.6cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.270'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 692/190
- Compression Ratio: 11.5:1 w/72cc Heads; 10.6:1 w/80cc Heads; 9.7:1 w/90cc
- Cast Iron Moly Ring Set
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height7.4
Package Width9.9
Package Length18.5
Weight18.77 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9953KTM.060
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
