Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9957.004

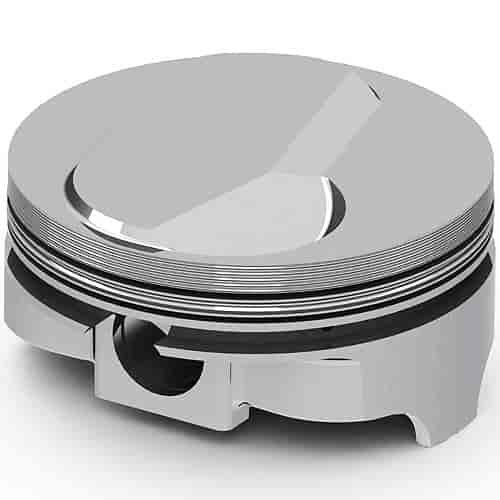

Chevy 540ci FHR Forged Pistons Solid Dome .121"
$70859
Ships on 09/11/2026
Lowest Price GuaranteeChevy 540ciDome Top Pistons
- Chevy 540ci FHR Forged Pistons
- Solid Dome .121''
- 4.504'' Bore (+.004'')
- Use w/6.385'' Connecting Rod & 4.250'' Crank Stroke
- 10.0/119cc Compression Ratio
- 8/pkg.
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.504'
- Crankshaft Stroke: 4.250'
- Connecting Rod Length: 6.385'
- Deck Height: 9.800'
- Compression Height: 1.270'
- Pin Size: 0.990' x 2.750'
- Pin Location: Centered
- Solid Dome Top: .121' 10cc 1 Valve Relief (Closed Chamber Design)
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.325'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 639/141
- Compression Ratio: 10.0:1 w/119cc Heads
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height3.8
Package Width9.5
Package Length18.2
Weight15.97 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9957.004
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
