Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-IC9961.030

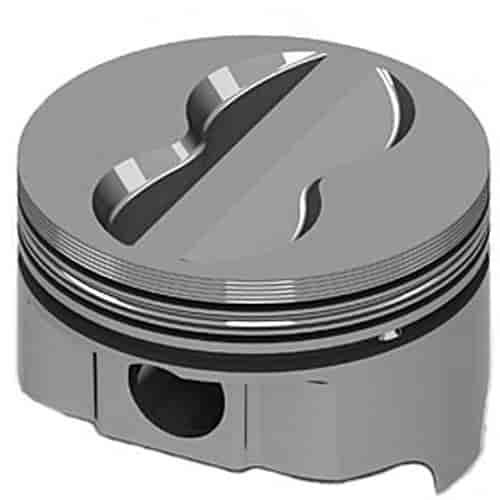

Chevy 383ci FHR Forged Pistons Flat Top 4V
$57693
Ships on 09/15/2026
Lowest Price GuaranteeChevy 383ciFlat Top Pistons Use w/6.000'' Connecting Rods Use with Chevy 350ci Block and 400ci Crankshaft
Chevy 383ci FHR Forged Pistons Flat Top 4V 4.030'' Bore (+.030'') Use w/6.000'' Connecting Rod & 3.750'' Crank Stroke Comp. Ratio: 11.1/58cc; 10.4/64cc; 9.2/76cc 8/pkg
Technical Specs:
- Alloy: Premium 4032 Alloy
- Bore: 4.030'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 6.000'
- Deck Height: 9.025'
- Compression Height: 1.125'
- Pin Size: 0.927' x 2.750'
- Pin Location: Offset
- Flat Top: 10cc 4 Symmetrical Valve Reliefs
- Intake Valve Relief: N/A
- Exhaust Valve Relief: N/A
- Top Landing Height: 0.220'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 432/132
- Compression Ratio: 11.1:1 w/58cc Heads; 10.4:1 w/64cc Heads; 9.2:1 w/76cc
- Use with 350ci block and 400ci crankshaft. This is a stroked 350ci chevy combination.
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.7
Package Width11.1
Package Length20.0
Weight11.24 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberIC9961.030
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
