Vehicle Info NeededUNITED ENGINE MACHINEPART NUMBER: 648-KB107KTM.STD

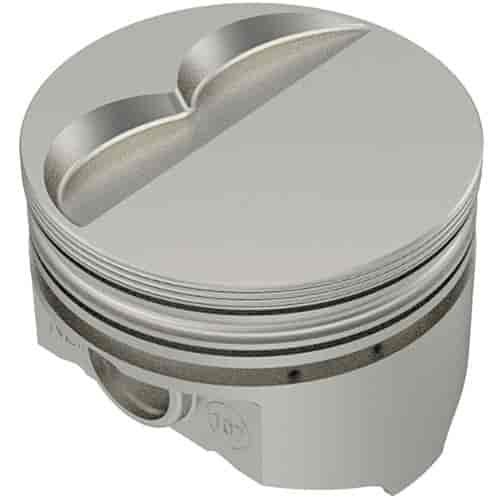

Chrysler 360ci Hypereutectic Piston and Ring Kit Flat Top
$49160
Ships on 09/04/2026
Lowest Price GuaranteeChrysler 360ciFlat Top Pistons
- Chrysler 360ci Hypereutectic Piston and Ring Kit
- Flat Top
- 4.000'' Bore (Standard)
- Use w/6.123'' Connecting Rod & 3.580'' Crank Stroke
- Comp. Ratio: 10.9/62cc; 10.7/64cc; 10.2/68cc; 9.8/72cc
- 8/pkg
Kit Includes: - 1 set of KB107.STD pistons
- 1 set of 4000AM8.STD ringsNote:
- Zero deck clearance
- Piston may protrude on 1992 and up Magnum truck blocks.
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.000'
- Crankshaft Stroke: 3.580'
- Connecting Rod Length: 6.123'
- Deck Height: 9.599'
- Compression Height: 1.675'
- Pin Size: 0.9842'
- Pin Location: Centered
- Flat Top: -5cc 2V Relief
- Intake Valve Relief: 0.280' Depth / 2.160' Diameter
- Exhaust Valve Relief: 0.280' Depth / 2.160' Diameter
- Top Landing Height: 0.274'
- Ring Grooves: 5/64' Top; 5/64' Middle; 3/16' Bottom
- Gram Weight: 502/132
- Compression Ratio: 10.9:1 w/62cc Heads; 10.7:1 w/64cc Heads; 10.2:1 w/68cc Heads; 9.8:1 w/72cc Heads
100% CNC Machined Pistons
New high silicon alloys and diamond tooling have give Keith Black designers the material and equipment for performance breakthroughs in engine design. KB piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, .072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design.
Show More
Features:
- 390 Hypereutectic alloy with 16% Silicon
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
- Sold in Sets (except when noted as 1 piston per package)
Part TypePiston
Product LineUEM Pistons KB Signature Series Hypereutectic Chrysler Pistons
BrandUNITED ENGINE MACHINE
Package Height7.2
Package Width9.7
Package Length18.5
Weight14.31 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberKB107KTM.STD
Package Qty1
Package TypeEA
