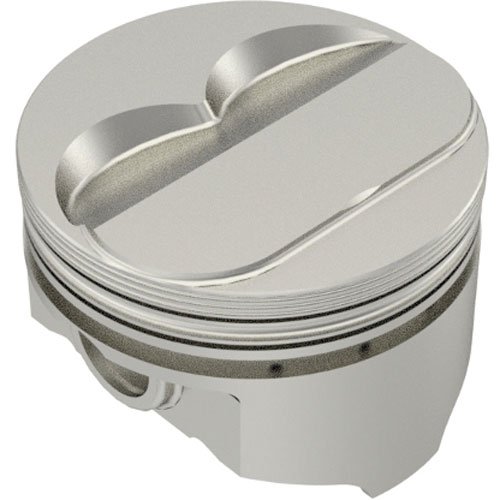

Chevy 383ciDome Top Pistons Use w/5.700'' Connecting Rods Use with Chevy 350ci Block and 400ci Crankshaft
- Chevy 383ci Hypereutectic Pistons
- Solid Dome .100''
- 4.000'' Bore (+.040'')
- Use w/5.700'' Connecting Rod & 3.750'' Crank Stroke
- Comp. Ratio: 12.9/58cc; 12.2/62cc; 11.9/64cc; 10.35/76cc
- 1/pkg
Technical Specs: - Alloy: Hypereutectic 390
- Bore: 4.040'
- Crankshaft Stroke: 3.750'
- Connecting Rod Length: 5.700'
- Deck Height: 9.025'
- Compression Height: 1.433'
- Pin Size: 0.9272'
- Pin Location: Centered
- Flat Top: -.5cc 2 Symmetrical Valve Reliefs
- Intake Valve Relief: 0.280' Depth / 2.168' Diameter
- Exhaust Valve Relief: 0.280' Depth / 2.168' Diameter
- Top Landing Height: 0.275'
- Ring Grooves: 1/16' Top; 1/16' Middle; 3/16' Bottom
- Gram Weight: 535/145
- Compression Ratio: 12.9:1 w/58cc Heads; 12.2:1 w/62cc Heads; 11.9:1 w/64cc; 10.35:1 w/76cc Heads
- Use with 350ci block and 400ci crankshaft. This is a stroked 350ci chevy combination.
Part TypePiston
BrandUNITED ENGINE MACHINE
Package Height5.0
Package Width5.0
Package Length5.4
Weight1.74 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part NumberSKB111.040
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
