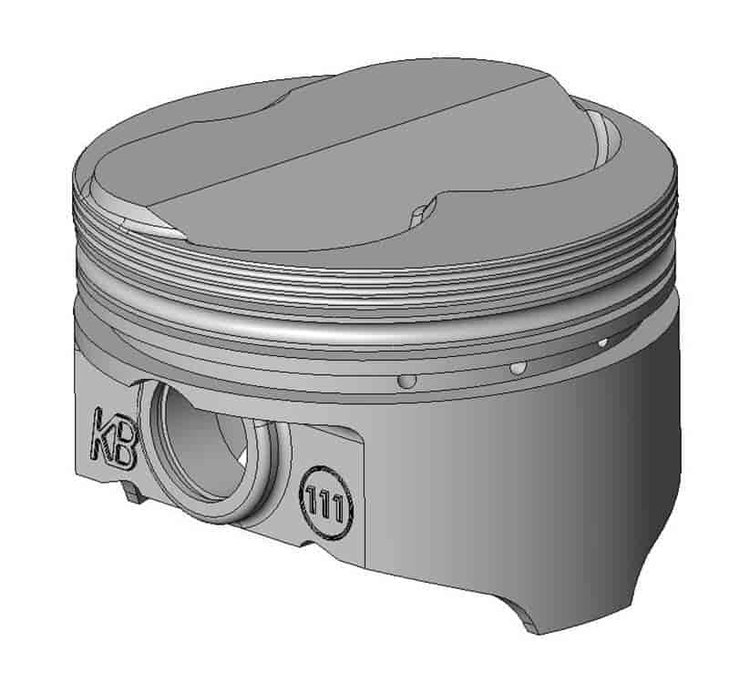

383ci Performance Pistons, 350 Block w/400 Crank, .060" Overbore Piston Dia.: 4.060"
Items You Need
- 383ci Performance Pistons, 350 Block w/400 Crank, .060'' Overbore
- Piston Dia.: 4.060''
- Piston Top: .100'' Dome, 2-Valve Reliefs
- Comp Ratio: 12.9:1 w/58cc Heads, 10.3:1 w/76cc Heads
- Rings: 1/16'', 1/16'', 3/16''
- Priced as Each, Sold as Set
Note: If necessary grind rod bolt heads for .030' clearance at camshaft. Grind block at pan rail if .030' clearance is not present.
100% CNC Machined Pistons
New high silicon alloys and diamond tooling have give Keith Black designers the material and equipment for performance breakthroughs in engine design. KB piston are 100% CNC machined and T-6 heat treated from 16%-18% silcon Hypereutectic alloy. Features include drilled oil returns and pin oil supply, .072'' spiral wound retaining ring, 100% diamond turned, compensated high strength ring lands, high top ring location, 360° pressure pin oiling, diamond honed pin hole and lightweight rigid rib skirt design.
Show More
Features:
- 390 Hypereutectic alloy with 16% Silicon
- Fully machined crowns and valve reliefs
- Drilled oil drain backs
- Full floating wrist pins
- Triple wound spiral locks
- Reflective alloy allows 2% power increase
- Quench dome technology minimizes deterioration
- Zero deck quench designs
- Sold in Sets (except when noted as 1 piston per package)
Click here for reference guide to piston top designs
